Map Board Mounting Assembly

Windchill Sports Map Board Mounting Assembly

Complete handlebar mounting system for Windchill map boards

The Windchill Map Board Mounting Assembly gives you a rock-solid, race-ready way to mount your Windchill map board to your handlebars. Built in Australia for MTBO, rogaining and adventure racing, this precision aluminium assembly delivers the stability and adjustability serious navigators demand.

Note: This listing is for the mounting assembly only.
(Map board and centre knob are sold separately.)

🚵 Built for Real Riding

This is not a generic bike mount — it’s designed specifically for navigation at speed:

• Holds your map board firm and vibration-free

• Withstands rough bush tracks, corrugations and trail impacts

• Easy to move between bikes or remove for transport

Whether you’re racing or training, your map stays where you need it.

🔩 Fits All Handlebar Sizes

The assembly is available to suit:

• 35 mm handlebars

• 31.8 mm handlebars

• 25 mm handlebars

If you plan to use the map board on more than one bike, simply order for your largest handlebar size and we can supply reducing inserts to suit the others.

Handlebar diameter is measured next to the stem.

🔧 Tool-Free Installation

No Allen keys. No tools.

The quick-clamp system allows you to:

• Fit or remove the mount in seconds

• Swap between bikes easily

• Make adjustments on the fly

Perfect for racing, travelling and multi-bike setups.

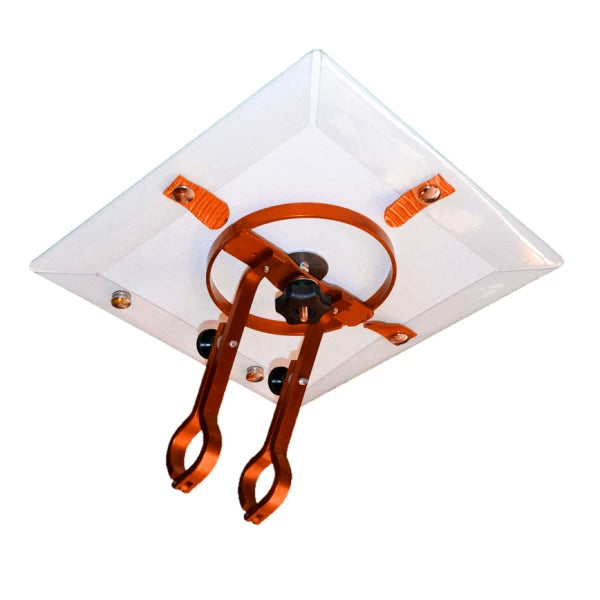

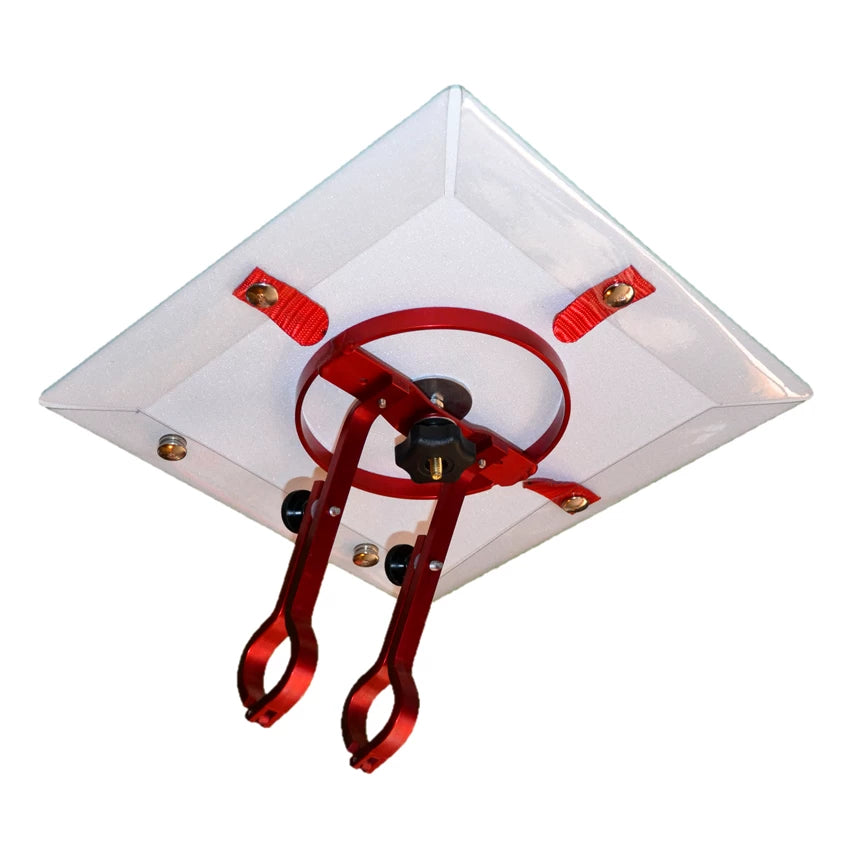

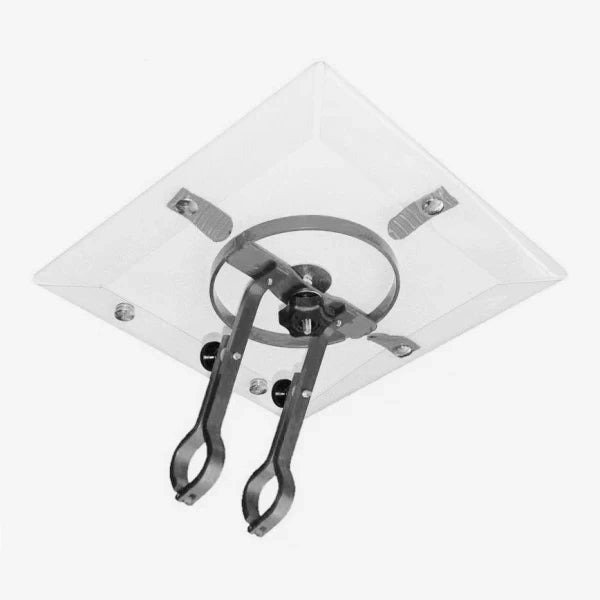

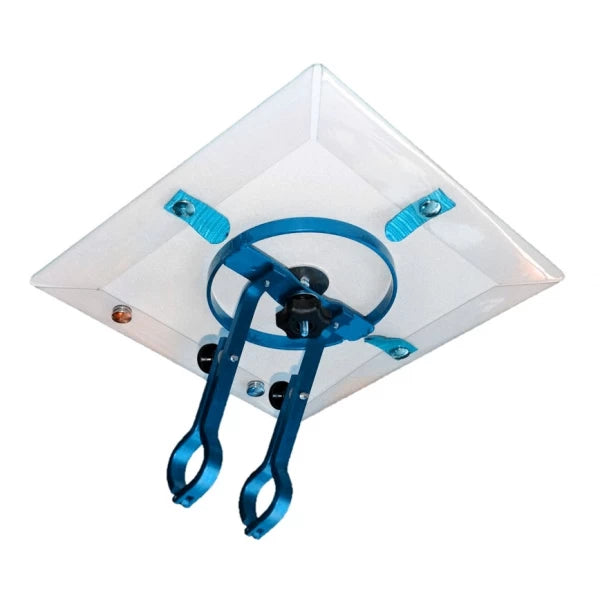

🎨 Custom Anodised Colours

The aluminium support ring and arms are available in a range of anodised finishes so you can match your bike or team colours.

Colours shown are indicative only — anodised finishes can vary slightly between batches and screens.

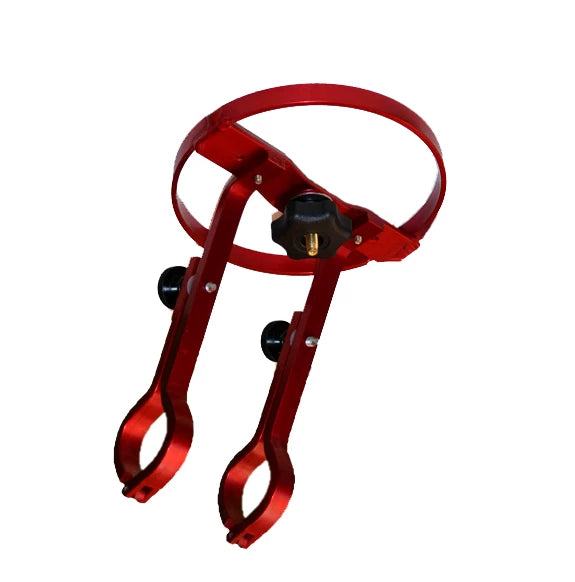

🛠️ What’s Included

• Aluminium support ring

• Pair of mounting arms

• Handlebar clamp system (size as specified)

(Map board and centre knob not included.)

🇦🇺 Australian Made — Built to Order

Every Windchill mounting assembly is made in Australia and built to order.

• Typical dispatch: within 5 business days

• If you need it for a specific race or event, just let us know — we’ll do our best to fast-track it.

🏁 The Foundation of a Rock-Solid Map Board Setup

Strong. Precise. Race-proven.

The Windchill Sports Map Board Mounting Assembly gives your navigation system the stable, professional foundation it deserves.

Choose your handlebar size and colour, and get race-ready.
