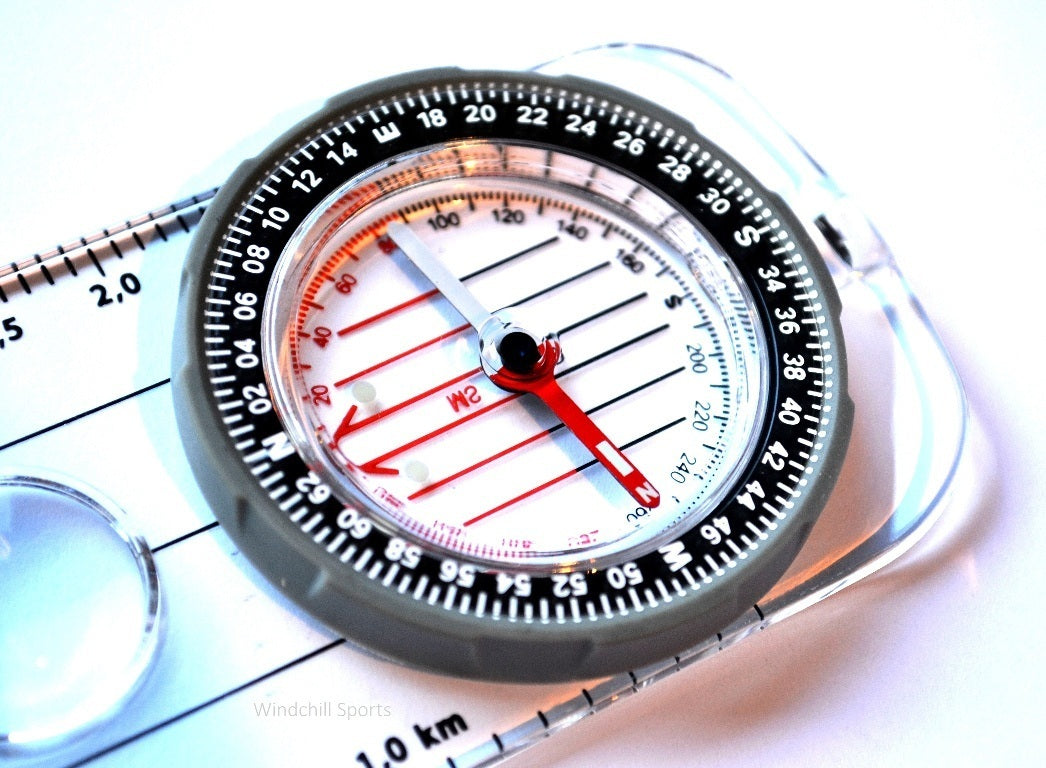

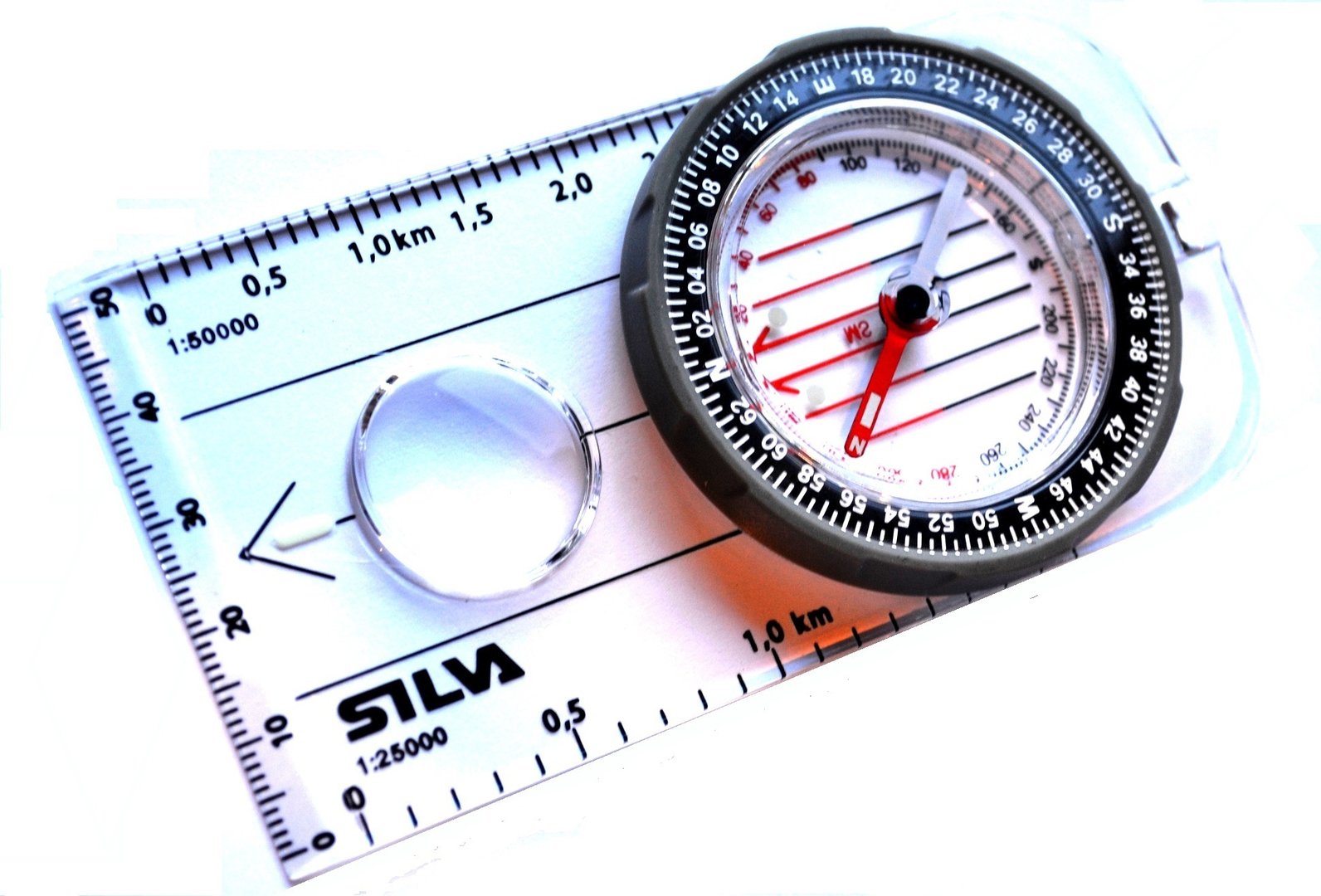

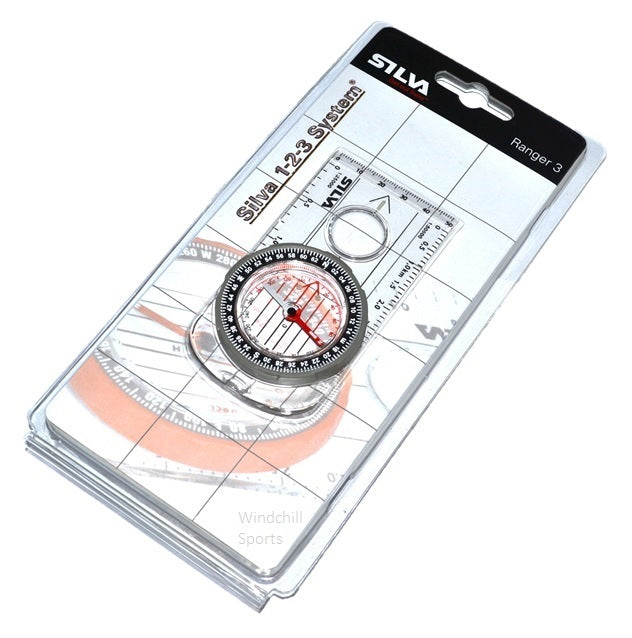

Ranger Military Compass 3-6400/360 Green by SILVA
Ranger Military Compass 3-6400/360 Green by SILVA Ranger Military Compass 3-6400/360 Green by SILVA

Ranger Military Compass 3-6400/360 Green by SILVA

or make 4 interest-free payments of $22.49 AUD fortnightly with Afterpay More info

The Silva Ranger 3-6400/360 military compass features DryFlex grip for easy handling and comes with a use-anywhere declination scale inside the capsule, a magnifying lens, and base plate map-measuring in mm and scales of 1:50,000 and 1:25,000. A go-anywhere tool for serious compass users.

Features:

  • Magnifying lens
  • Illumination – 6 hours
  • Scales: 1:25 000 and 1:50 000
  • Luminous compound: Everglow
  • Graduation: 6400 military mils and 360 degrees
  • Declination adjustment: Declination scale in capsule
  • Silva 1-2-3 system baseplate compass
  • Lanyard

Specifications:

  • Available graduations: 6400/360
  • Resolution degrees/mils: 2 / 50
  • Measuring scales on base plate: 1:25k, 1:50k, mm
  • UTM position plotting scales (Romer scales): No
  • Settling time from 90 degree angle within +/- 3 deg: 2.7 seconds
  • Settling time from 90 degree angle to complete rest: 5 seconds
  • Accuracy: +/- 1 degree (17.5 mils)
  • Waterproof: IP68 - (more than 100 m)
  • Altitude use: 5000m@-15 C
  • Impact resistance: 30g in XYZ directions and free fall from 1,5 m height into gravel
  • Temperature operating range: -40 to +60 oC
  • Material: Acrylic
  • Size (mm): 106x54x10

Compass Instruction Manual
