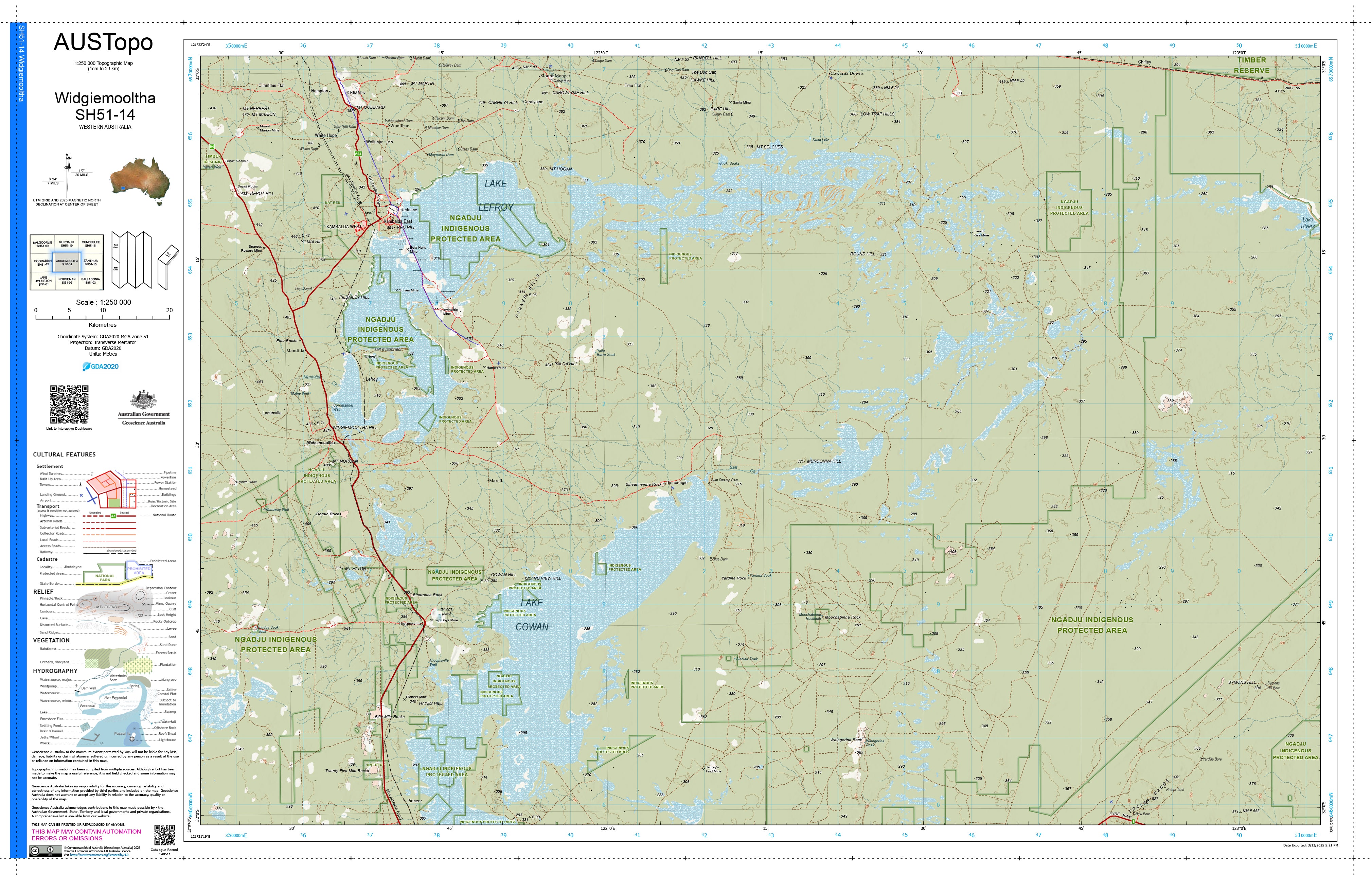

Widgiemooltha SH51-14 — AUSTopo 1:250,000 Topographic Map (2025)

World-class gold and nickel country, immense salt lakes, and the strategic corridor between Kalgoorlie and Norseman—mapped in authoritative regional detail

Covering Widgiemooltha, Kambalda, Lake Lefroy, and the surrounding Eastern Goldfields, this AUSTopo 1:250,000 sheet delivers a powerful regional view of one of Western Australia’s most significant mining landscapes. Extensive salt-lake systems, mineral fields, woodland, low rocky rises, historic settlements, and operational infrastructure are linked by the highway and rail corridors running south from the Kalgoorlie region.

From the mines and access routes surrounding Lake Lefroy to the historic Widgiemooltha district and the broader Great Western Woodlands, the map provides dependable context for mineral exploration, engineering, environmental management, emergency coordination, heritage work, and experienced remote-area travel. The region also holds continuing cultural significance for Ngadju and other Goldfields Traditional Owners.

At 1:250,000 scale (1 cm = 2.5 km), this is the largest scale at which published topographic maps cover the entire Australian continent—ideal for regional planning, land management, operational briefings, and serious outback navigation.

Explore neighbouring sheets and confirm coverage using the official AUSTopo 1:250,000 map index.

🧭 Why this map stands out

• Updated mapping (2025) — aligned to modern Australian datums for confident, current use

• Exceptional mining-region perspective — Kambalda, Widgiemooltha, Lake Lefroy, and surrounding access corridors shown together

• Strategic infrastructure context — highways, railways, mine access routes, and remote facilities presented within the wider terrain

• Professional-grade cartography — suited to geologists, engineers, emergency services, environmental teams, and land managers

• Dual coordinate systems — supports a seamless transition between office planning and field navigation

• Printed in Australia — precision output, locally finished and quality-checked

🗺️ What you’ll see

• Widgiemooltha, Kambalda, historic localities, mining areas, and remote facilities

• Lake Lefroy, adjoining salt lakes, claypans, drainage systems, and seasonal water features

• The Coolgardie–Esperance Highway, railways, roads, mine access routes, and remote tracks

• Contours and spot elevations across low ranges, rocky hills, plains, and woodland country

• Mining infrastructure, place names, vegetation patterns, and administrative boundaries

• Clear coordinate grids for positioning, exploration planning, logistics, and regional coordination

Access note: Much of the region includes active mining leases and remote operational areas. Confirm mine-site restrictions, land-access permissions, road and track conditions, weather, fuel availability, and current local advice before travelling beyond maintained public routes.

📐 Map details at a glance

• Scale: 1:250,000

• Series: AUSTopo — Australian Digital Topographic Map Series

• Coverage: Widgiemooltha SH51-14

• Map currency: 2025

• Coordinates: Geographical & MGA

• Datum: GDA2020, AHD

• Projection: Universal Transverse Mercator (UTM)

• Sheet size: 800 mm (W) × 500 mm (H)

💧 Field-Ready Options for Rugged Use

Choose the format that best suits your intended use—from lightweight trip planning to demanding all-weather fieldwork.

✅ Standard Paper

• Printed on 100 gsm FSC® coated paper

• Produces crisp, clear text and finely defined map symbols

• Lightweight and convenient for general reference or protected field use

• An economical choice for trip planning, research and office applications

✅ Waterproof and Tearproof Tyvek®

• Made from genuine DuPont™ Tyvek®, an advanced synthetic material composed of pure polyethylene fibres

• Waterproof, tear-resistant, foldable and extremely lightweight

• Printed using HP pigment-based inks for a permanent waterproof finish

• Suitable for backpacks, vehicles and exposed field conditions

• Ideal for bushwalkers, emergency personnel and outdoor professionals

• Provides exceptional durability without the weight and bulk of lamination

✅ Laminated

• Fully encapsulated between two 80-micron gloss laminate sheets

• Highly resistant to water, stains, smudges and tearing

• Draw on the surface with whiteboard markers for route planning or instruction

• Use Mark-It-Dots to identify campsites, hazards, access points or other locations without marking the map permanently

• Wipeable and reusable

• Ideal for offices, classrooms, operations centres and repeated field reference

🎯 Who it’s for

• Mining, geology, exploration, and survey teams

• Emergency services and remote-area coordinators

• Environmental, woodland, and land-use managers

• Engineers, transport, rail, logistics, and infrastructure planners

• Traditional Owner organisations, rangers, and cultural heritage teams

• Outback travellers, historians, educators, and map collectors

🇦🇺 Our commitment

Every AUSTopo map we supply is printed and finished in Australia, colour-managed for accuracy, hand-checked, and packed with care—so it arrives ready for real-world use.

Plan, brief, and explore the Widgiemooltha region with confidence. Choose your finish and add this essential 2025 AUSTopo map to your kit today.
