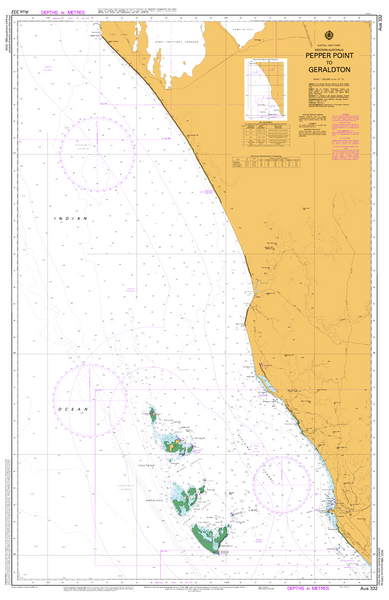

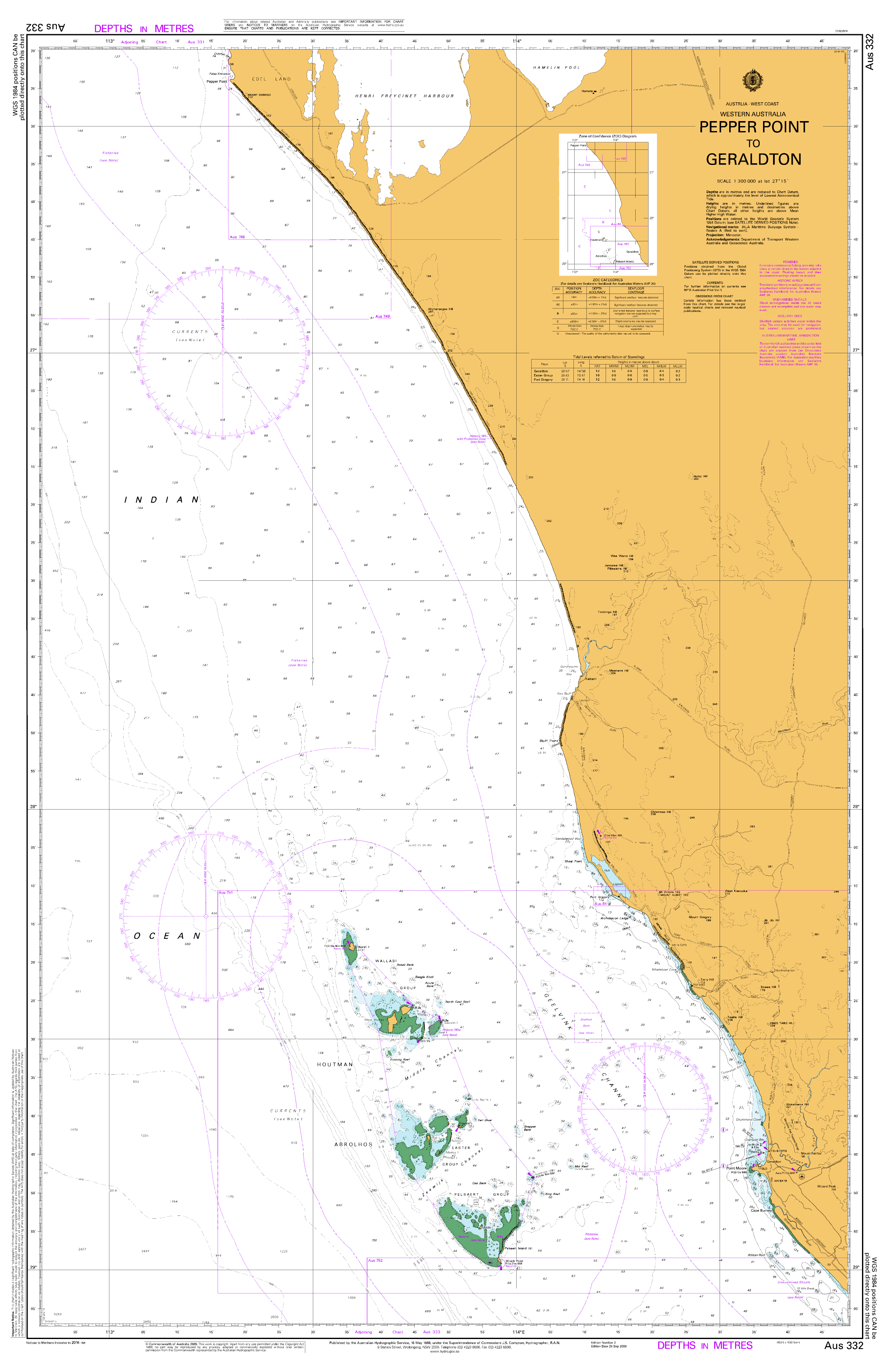

AUS 332 — Pepper Point to Geraldton, WA Nautical Chart
For skippers, pilots, and coastal crews running WA’s mid-west corridor
Plan confident passages with AUS 332. Regional coverage from Pepper Point down to Geraldton at 1:300,000 on Mercator projection—ideal for shaping long legs, setting landfall bearings, and verifying offshore waypoints along Western Australia’s west coast.
Why skippers choose this chart
-
🧭 Big-picture routing — 1:300,000 clarity between headlands, reefs, and offshore features.
-
🚢 Transit awareness — Supports safe offsets from banks/shoals and staging approaches to anchorages.
-
🛰️ Mercator projection — Straight-line bearings and simple DR plotting on extended runs.
-
📍 Exact bounds — All four limits listed for quick position checks (see below).
-
🗺️ Deck-ready materials — Soft-matte, writeable laminate face for correction/grease pencils.
-
🇦🇺 Printed in Australia — Colour-managed, hand-checked.
Coverage
Premium materials & finishes
-
Paper (120 gsm matte) — Crisp, flexible, chart-table friendly; ideal under nav-station glass.
-
Laminated (soft-matte front / gloss back, edge-sealed) — Front is low-glare and writeable; gloss back adds rigidity. Wipes clean with a soft cloth.
We use a soft-matte writeable face with a gloss reverse so you can annotate fixes, ETAs, and weather gates directly on the chart, then clean down between passages.
On-board & ashore use
-
🧭 Passage planning — Plot offshore routes, clearing lines, and contingencies along the mid-west.
-
📒 Crew briefings — Clear overview for hazards and waypoint verification.
-
🛠️ Bridge/club display — Durable laminated option for training rooms and noticeboards.
-
🎁 Gift for skippers — A practical planning chart for WA crews.
Specifications
Field |
Detail |
Chart Number |
AUS 332 |
Title |
Australia West Coast — Western Australia — Pepper Point to Geraldton |
Geographic Location |
Australia |
Scale (main) |
1:300,000 |
Projection |
Mercator |
North / South Limits |
26°19.81′ S / 29°06.94′ S |
East / West Limits |
114°48.84′ E / 112°50.06′ E |
Publication Date |
16-May-1988 |
Latest Edition |
21-Aug-2020 |
Sheet Size |
770 mm (W) × 1100 mm (H) |
Available Finishes |
Paper (120 gsm matte); Laminated (soft-matte writeable front, gloss back, edge-sealed) |
Inks |
Pigment-based, fade-resistant |
Origin |
Printed in Australia |
Important note (mariner’s guidance)
This product is ideal for planning, briefing, education, and display. For underway navigation, always carry and consult the latest official hydrographic chart or approved ECDIS and current Notices to Mariners. Conditions and aids may change.
Ready to run Pepper Point to Geraldton?
Select your finish above and add to cart. We’ll print locally, hand-check, and ship with care.
