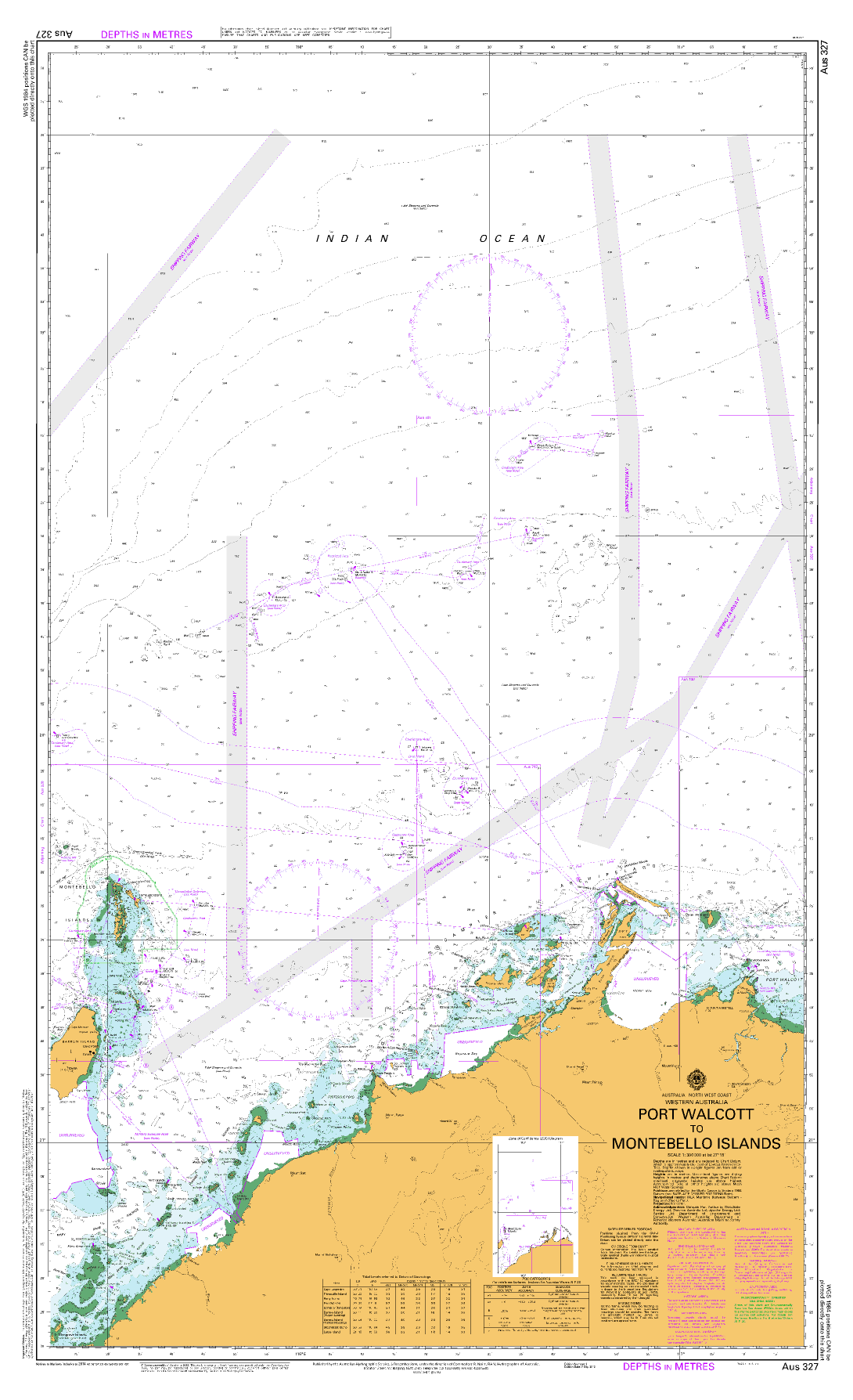

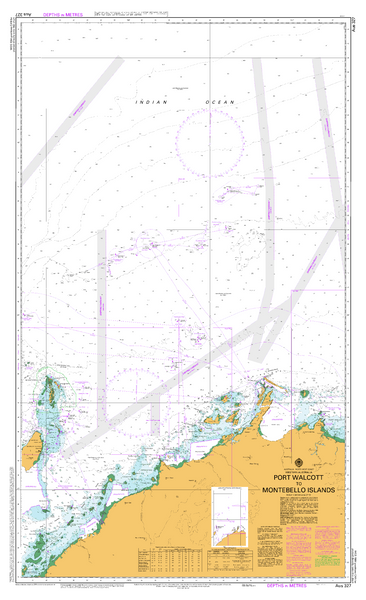

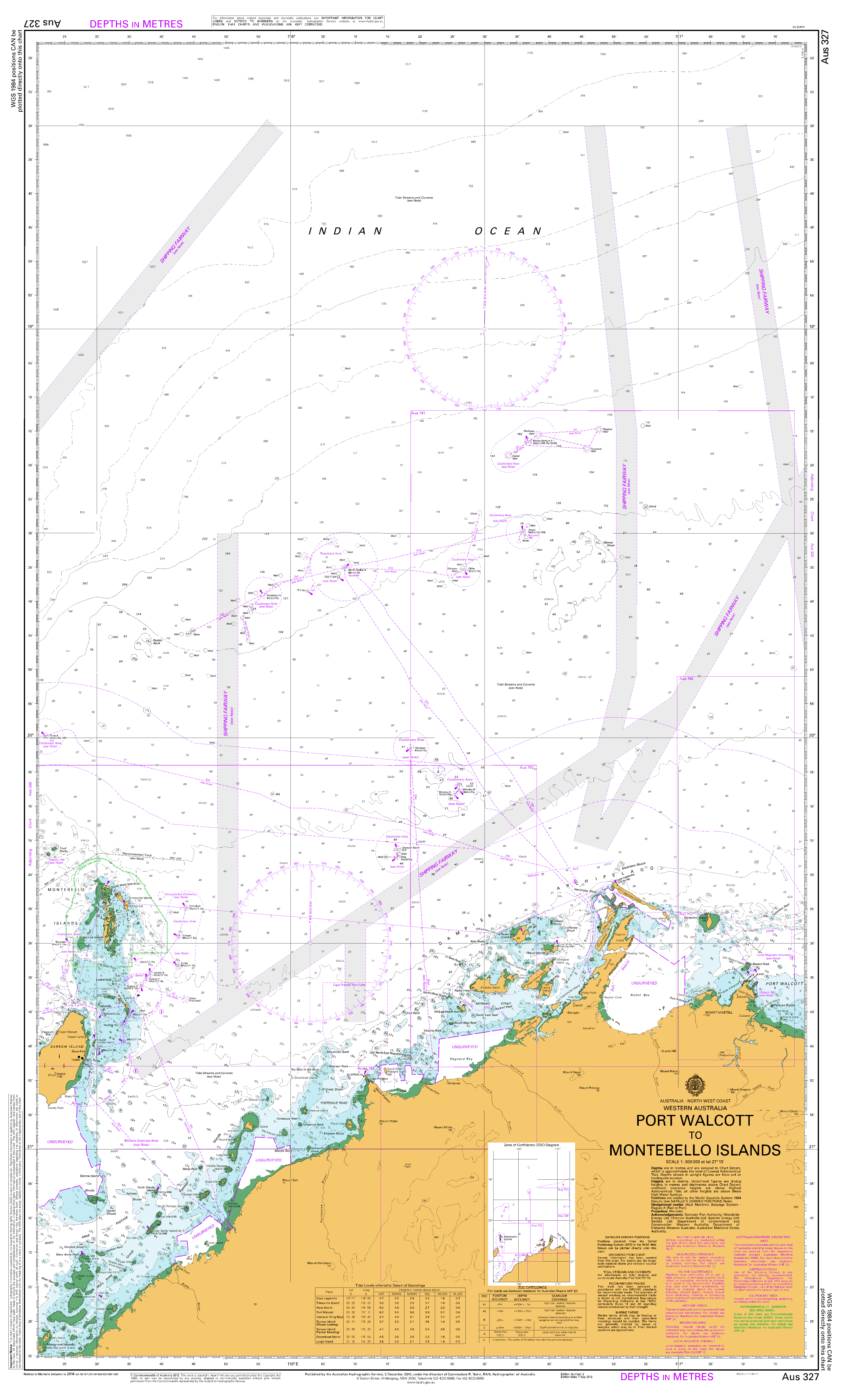

AUS 327 — Port Walcott to Montebello Islands, WA Nautical Chart

For skippers, pilots, and coastal crews running the offshore Pilbara corridor

Plan confident passages with AUS 327. Regional coverage from Port Walcott to the Montebello Islands at 1:300,000 on Mercator projection—ideal for shaping long legs, setting landfall bearings, and verifying offshore waypoints along WA’s north-west approaches.


Why skippers choose this chart

  • 🧭 Big-picture routing1:300,000 clarity between islands, banks, and offshore features.

  • 🚢 Transit awareness — Supports safe offsets from shoals/reefs and staging approaches to anchorages.

  • 🛰️ Mercator projection — Straight-line bearings and simple DR plotting on extended runs.

  • 📍 Exact bounds — All four limits listed for quick position checks (see below).

  • 🗺️ Deck-ready materials — Soft-matte, writeable laminate face for correction/grease pencils.

  • 🇦🇺 Printed in Australia — Colour-managed, hand-checked.


Coverage

  • Main Chart — AUS 327: Australia North West Coast · Western Australia · Port Walcott to Montebello Islands

    • Scale: 1:300,000 · Projection: Mercator

    • Bounds: N 18°18.00′ S · S 21°30.00′ S · E 117°19.50′ E · W 115°21.00′ E

    • Publication: 18-Aug-1967 · Latest Edition: 29-Nov-2019


Premium materials & finishes

  • Paper (120 gsm matte) — Crisp, flexible, and chart-table friendly; ideal under nav-station glass.

  • Laminated (soft-matte front / gloss back, edge-sealed)Front is low-glare and writeable; gloss back adds rigidity. Wipes clean with a soft cloth.

We use a soft-matte writeable face with a gloss reverse so you can annotate fixes, ETAs, and weather gates directly on the chart, then clean down between passages.


On-board & ashore use

  • 🧭 Passage planning — Plot offshore routes, clearing lines, and contingencies across the Pilbara.

  • 📒 Crew briefings — Clear overview for hazards and waypoint verification.

  • 🛠️ Bridge/club display — Durable laminated option for training rooms and noticeboards.

  • 🎁 Gift for skippers — A practical north-west planning chart for WA crews.


Specifications

Field Detail
Chart Number AUS 327
Title Australia North West Coast — Western Australia — Port Walcott to Montebello Islands
Geographic Location Australia
Scale (main) 1:300,000
Projection Mercator
North / South Limits 18°18.00′ S / 21°30.00′ S
East / West Limits 117°19.50′ E / 115°21.00′ E
Publication Date 18-Aug-1967
Latest Edition 29-Nov-2019
Sheet Size 770 mm (W) × 1100 mm (H)
Available Finishes Paper (120 gsm matte); Laminated (soft-matte writeable front, gloss back, edge-sealed)
Inks Pigment-based, fade-resistant
Origin Printed in Australia

Important note (mariner’s guidance)

This product is ideal for planning, briefing, education, and display. For underway navigation, always carry and consult the latest official hydrographic chart or approved ECDIS and current Notices to Mariners. Local conditions and aids may change.


Ready to run Port Walcott to the Montebellos?

Select your finish above and add to cart. We’ll print locally, hand-check, and ship with care.
