AUS 267 — Port of Lucinda, QLD Nautical Chart
For skippers, pilots, and coastal crews transiting the Hinchinbrook/Lucinda coast
Bring the Port of Lucinda and its famed offshore sugar jetty into sharp focus. AUS 267 delivers harbour-scale detail at 1:12,500, with a dedicated 1:5,000 inset for the Lucinda Offshore Wharf—perfect for plotting buoyed fairways, berth approaches, bunkering, and close-quarters manoeuvres.
Why skippers choose this chart
-
🧭 Made for approach work — Main sheet at 1:12,500 for clear harbour and approach context.
-
⚓ Terminal precision — Lucinda Offshore Wharf inset at 1:5,000 for wharf alignment, swing areas and turning basins.
-
🛰️ Universal Transverse Mercator — Clean projection for bearings and GPS plotting.
-
📍 Exact bounds — All four limits listed for quick position checks (see below).
-
🗺️ Deck-ready materials — Writeable laminate front face for chart-correction pencils.
-
🇦🇺 Printed in Australia — Colour-managed, hand-checked.
Coverage & insets
-

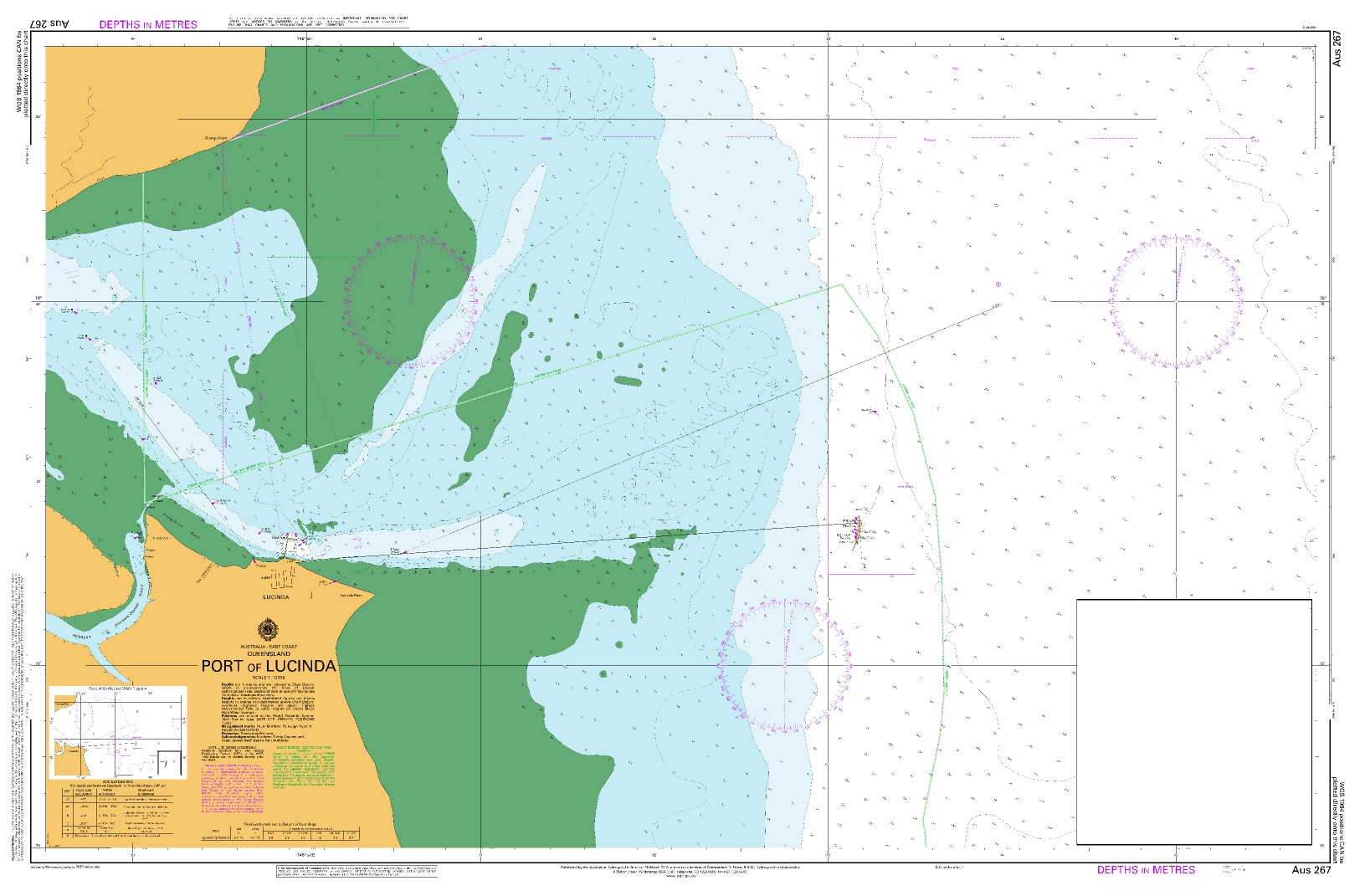

Main Chart — AUS 267: Australia East Coast · Queensland · Port of Lucinda
-
Scale: 1:12,500 · Projection: Universal Transverse Mercator
-
Bounds: N 18°28.60′ S · S 18°33.00′ S · E 146°25.80′ E · W 146°18.50′ E
-
Publication: 26-Mar-2010 · Latest Edition: 28-Jun-2019
-
-

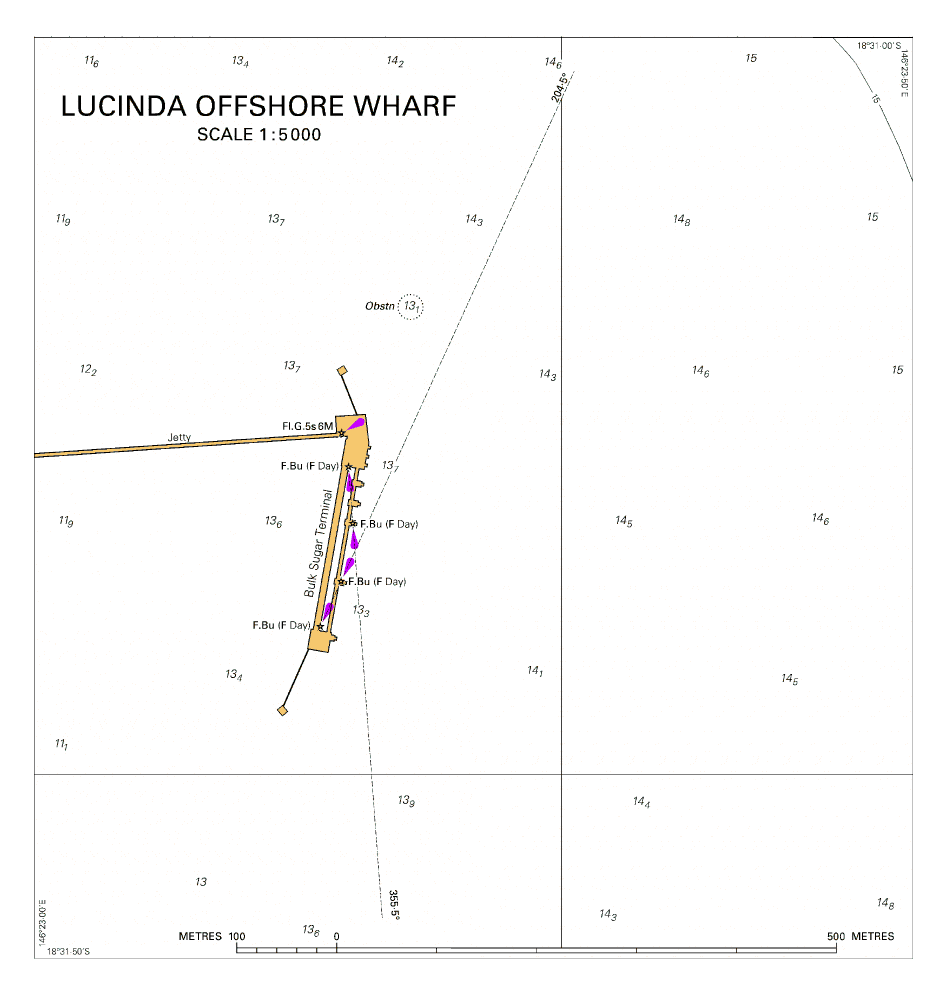

Subchart — AUS 267 (Lucinda Offshore Wharf)
-
Scale: 1:5,000 · Projection: Universal Transverse Mercator
-
Bounds: N 18°31.00′ S · S 18°31.50′ S · E 146°23.50′ E · W 146°23.00′ E
-
Publication/Edition: 26-Mar-2010 / 28-Jun-2019
-
Premium materials & finishes
-
Paper (120 gsm matte) — Crisp, flexible and chart-table friendly; ideal under nav-station glass.
-
Laminated (soft-matte front / gloss back, edge-sealed) — Front side is low-glare and writeable with chart-correcting/grease pencils; gloss back adds rigidity. Wipes clean with a soft cloth.
Note: We’ve intentionally configured the laminate with a soft-matte writeable face and a gloss reverse so you can annotate pilotage notes, fixes and ETAs directly on the chart, then clean down between passages.
On-board & ashore use
-
🧭 Passage planning — Pre-plot approaches, tide windows and contingencies.
-
📒 Crew briefings — At-a-glance layouts for pilotage notes and waypoint checks.
-
🛠️ Port/club display — Durable laminated option for noticeboards and training rooms.
-
🎁 Gift for skippers — A practical, good-looking chart for locals and visiting cruisers.
Specifications
| Field | Detail |
|---|---|
| Chart Number | AUS 267 |
| Title | Australia East Coast — Queensland — Port of Lucinda |
| Geographic Location | Australia |
| Scale (main) | 1:12,500 |
| Projection | Universal Transverse Mercator |
| North / South Limits | 18°28.60′ S / 18°33.00′ S |
| East / West Limits | 146°25.80′ E / 146°18.50′ E |
| Publication Date | 26-Mar-2010 |
| Latest Edition | 28-Jun-2019 |
| Subchart | AUS 267 (Lucinda Offshore Wharf) — 1:5,000 — 18°31.00′ S to 18°31.50′ S; 146°23.50′ E to 146°23.00′ E — 26-Mar-2010 / 28-Jun-2019 |
| Sheet Size | 1100 mm (W) × 770 mm (H) |
| Available Finishes | Paper (120 gsm matte); Laminated (soft-matte writeable front, gloss back, edge-sealed) |
| Inks | Pigment-based, fade-resistant |
| Origin | Printed in Australia |
Important note (mariner’s guidance)
This product is ideal for planning, briefing, education, and display. For underway navigation, always carry and consult the latest official hydrographic chart or approved ECDIS and current Notices to Mariners. Local conditions and aids may change.
Ready to work the Lucinda approach and offshore wharf?
Select your finish above and add to cart. We’ll print locally, hand-check, and ship with care.
