AUS 236 — Moreton Bay, QLD Nautical Chart
For skippers, fishers, and bay cruisers working SEQ’s channels, banks, and beacons
Bring Moreton Bay into crisp, working focus. AUS 236 covers the bay and approaches at 1:75,000, with a dedicated Manly Boat Harbour inset at 1:20,000—ideal for plotting channels, marking leads and beacons, and running clear crew briefings before you depart.
Why skippers choose this chart
-
🧭 Bay-scale clarity — 1:75,000 balances broad coverage with practical inshore detail.
-
🐚 Banks & channels — Helpful for threading shoals, sandbanks, and buoyed fairways.
-
🛰️ Clean plotting — Mercator main sheet; UTM inset for accurate bearings and GPS cross-checks.
-
📍 Exact bounds — All four limits listed for quick position checks (see below).
-
🗺️ Deck-ready materials — Writeable laminate front face for chart-correcting/grease pencils.
-
🇦🇺 Printed in Australia — Colour-managed, hand-checked.
Coverage & inset
-

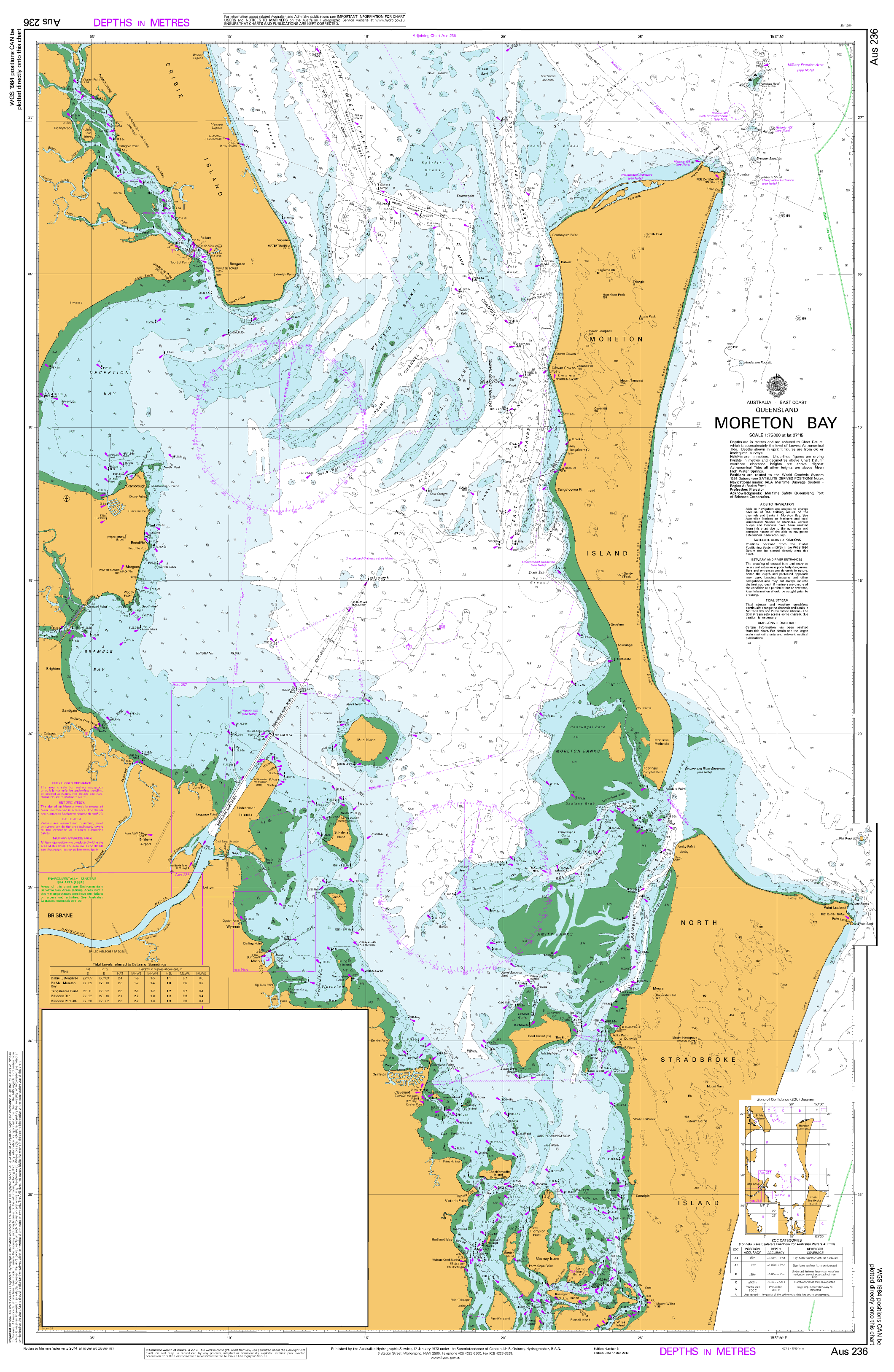

Main Chart — AUS 236: Australia · East Coast · Queensland · Moreton Bay
-
Scale: 1:75,000 · Projection: Mercator
-
Bounds: N 26°57.47′ S · S 27°39.41′ S · E 153°32.75′ E · W 153°03.07′ E
-
Publication: 17-Jan-1973 · Latest Edition: 28-Oct-2022
-
-

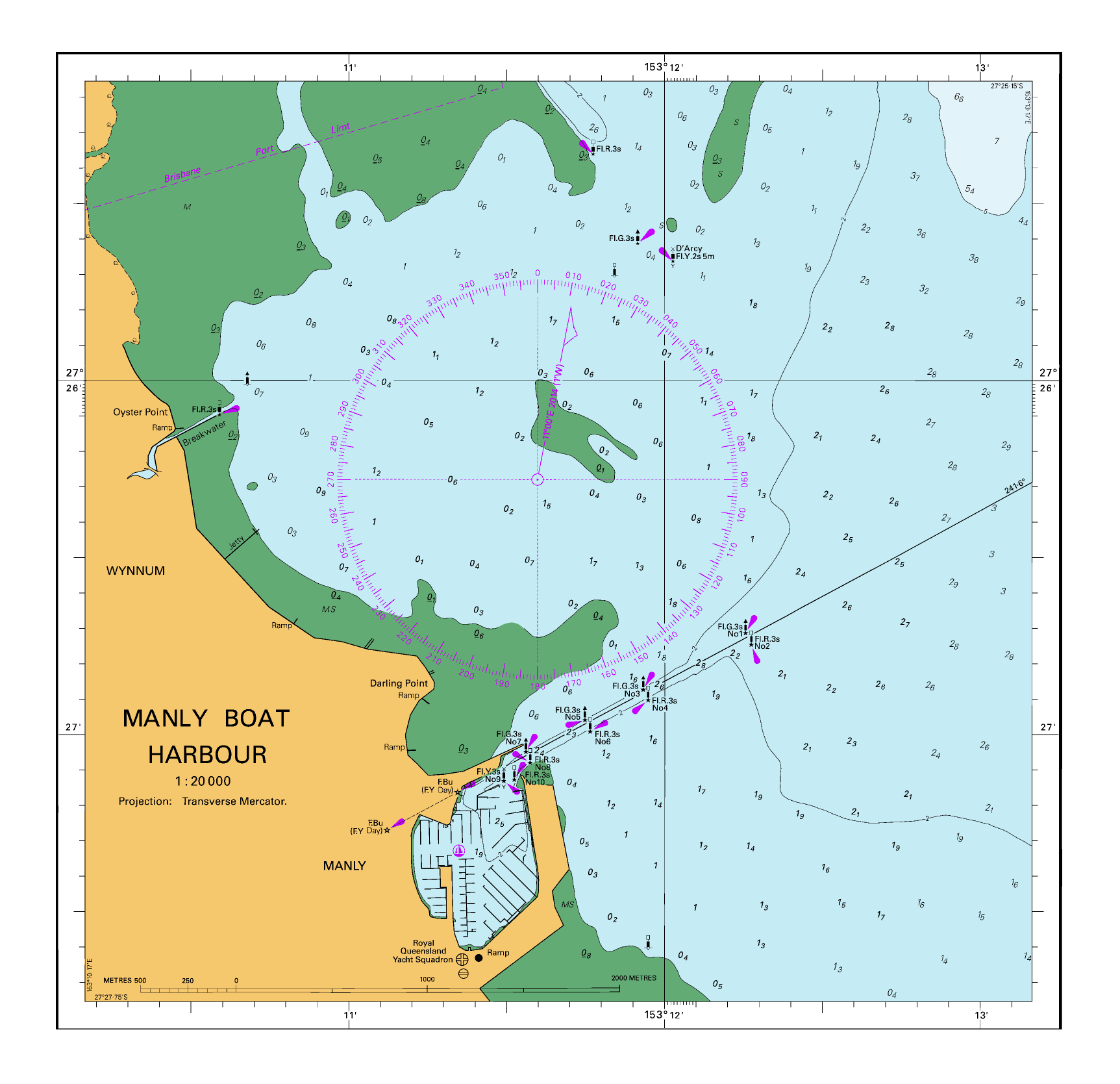

Subchart — Manly Boat Harbour
-
Scale: 1:20,000 · Projection: Universal Transverse Mercator
-
Bounds: N 27°25.16′ S · S 27°27.75′ S · E 153°13.17′ E · W 153°10.16′ E
-
Publication: 17-Jan-1973 · Latest Edition: 12-Jun-2024
-
Premium materials & finishes
-
Paper (120 gsm matte) — Clear, lightweight and flexible on the chart table; perfect under nav-station glass.
-
Laminated (soft-matte front / gloss back, edge-sealed) — Front side is low-glare and writeable with chart-correcting/grease pencils; gloss back adds rigidity. Wipes clean with a soft cloth.
Skipper’s note: The soft-matte writeable face is specified so you can mark fixes, ETAs and pilotage notes, then clean down between passages.
On-board & ashore use
-
🧭 Passage planning — Plot routes through banks and buoyed channels before you cast off.
-
📒 Crew briefings — At-a-glance layout for roles, calls and nav references.
-
🛠️ Club/marina display — Durable laminated option for training rooms and noticeboards.
-
🎁 Practical gift — A dependable working chart for local and visiting skippers.
Specifications
| Field | Detail |
|---|---|
| Chart Number | AUS 236 |
| Title | Australia — East Coast — Queensland — Moreton Bay |
| Geographic Location | Australia |
| Scale (main) | 1:75,000 |
| Projection (main) | Mercator |
| North / South Limits | 26°57.47′ S / 27°39.41′ S |
| East / West Limits | 153°32.75′ E / 153°03.07′ E |
| Publication Date (main) | 17-Jan-1973 |
| Latest Edition (main) | 28-Oct-2022 |
| Subchart | Manly Boat Harbour — 1:20,000 — 27°25.16′ S to 27°27.75′ S; 153°13.17′ E to 153°10.16′ E — Latest Edition: 12-Jun-2024 (UTM) |
| Sheet Size | 770 mm (W) × 1100 mm (H) |
| Available Finishes | Paper (120 gsm matte); Laminated (soft-matte writeable front, gloss back, edge-sealed) |
| Inks | Pigment-based, fade-resistant |
| Origin | Printed in Australia |
Important note (mariner’s guidance)
This product is ideal for planning, briefing, education, and display. For navigation underway—especially where banks shift—always carry and consult the latest official hydrographic chart or approved ECDIS with current Notices to Mariners and local guidance. Conditions and aids can change.
Thread Moreton Bay with confidence
Select your finish above and add to cart. We’ll print locally, hand-check, and ship with care.
