AUS 200 - Port Jackson Nautical Chart

$49.95

Afterpay is only available for orders between $50.00 and $1000.00 More info

AUS 200 — Port Jackson (Sydney Harbour), NSW Nautical Chart

For skippers, pilots, and harbour cruisers working Sydney Harbour & Parramatta River

Bring Sydney Harbour (Port Jackson) into sharp, working focus. AUS 200 delivers harbour-scale detail at 1:20,000, plus a dedicated Parramatta River subchart—ideal for pilotage notes, berth approaches, and tight inshore manoeuvres.

Why skippers choose this chart

🧭 Harbour-scale clarity — 1:20,000 for dependable eyeball nav with GPS cross-checks.
⚓ Inner-harbour focus — Includes a full Parramatta River subchart for upriver transits and berth planning.
🛰️ UTM projection — Universal Transverse Mercator for clean bearings and plotting.
📍 Exact bounds listed — North/South/East/West limits for quick position verification.
🗺️ Deck-ready materials — Soft-matte, writeable laminate face for chart-correction/grease pencils.
🇦🇺 Printed in Australia — Colour-managed output, hand-checked.

Coverage & inset

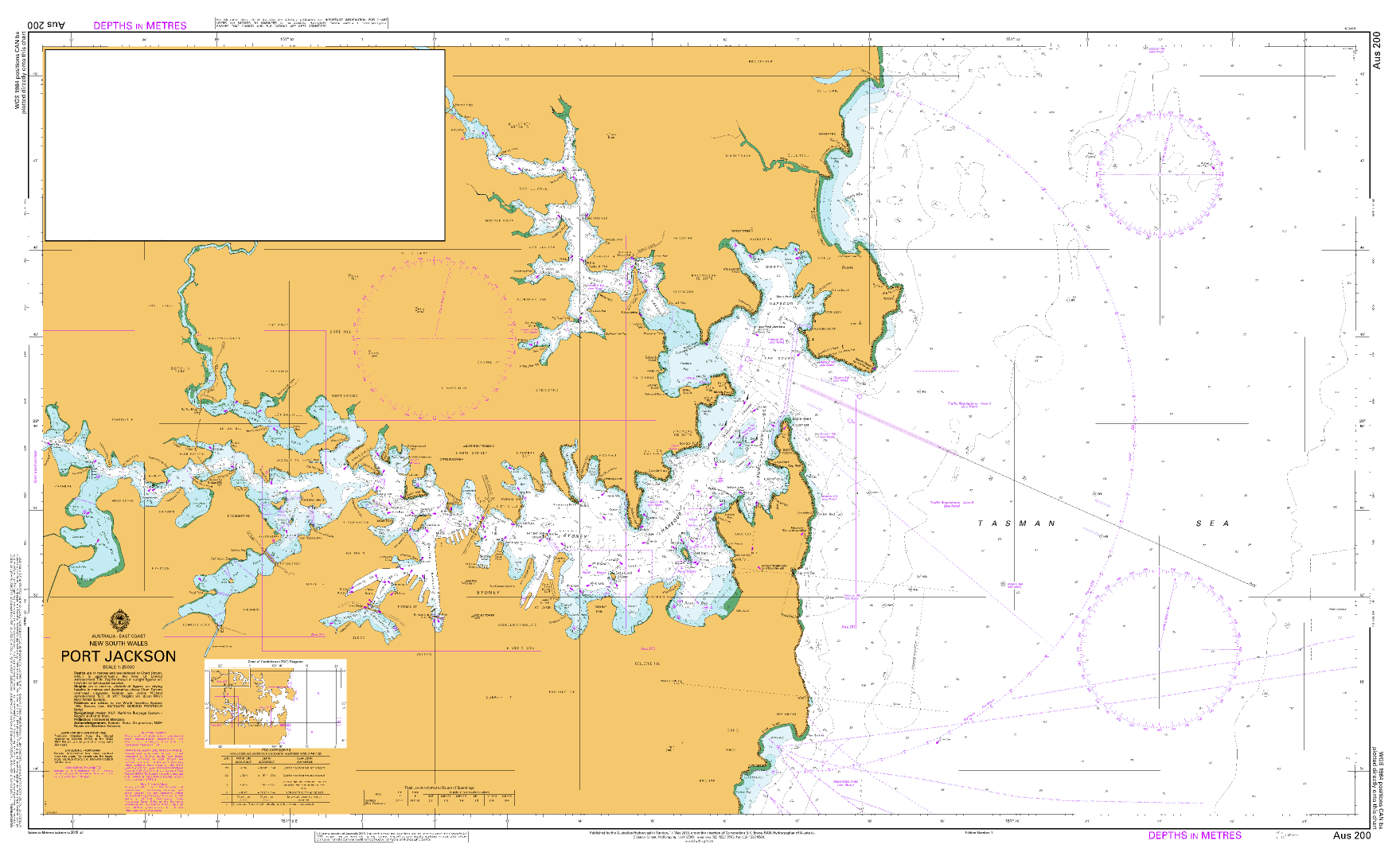

Main Chart — AUS 200: Australia · East Coast · New South Wales · Port Jackson
- Scale: 1:20,000 · Projection: Universal Transverse Mercator
- Bounds: N 33°46.43′ S · S 33°53.50′ S · E 151°19.55′ E · W 151°06.15′ E
- Publication: 02-Aug-1972 · Latest Edition: 29-Sep-2023

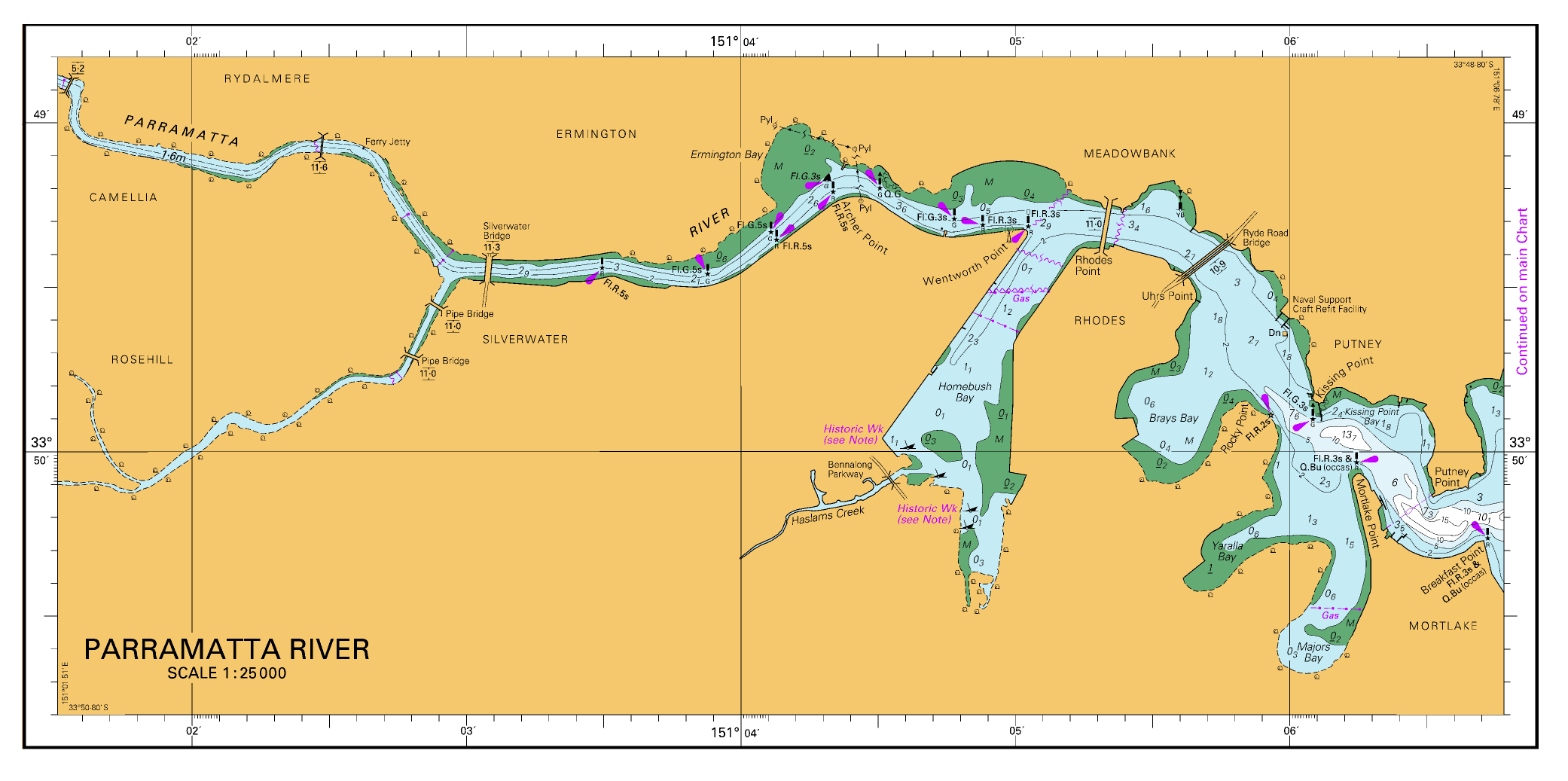

Subchart — AUS 200 (Parramatta River)
- Scale: 1:20,000 · Projection: Universal Transverse Mercator
- Bounds: N 33°48.92′ S · S 33°50.90′ S · E 151°06.48′ E · W 151°01.45′ E
- Publication: 30-Oct-2023 · Edition: 29-Sep-2023

Premium materials & finishes

Paper (120 gsm matte) — Clear, lightweight, and chart-table friendly; perfect under nav-station glass.
Laminated (soft-matte front / gloss back, edge-sealed) — Front is low-glare and writeable; gloss back adds rigidity. Wipes clean with a soft cloth.

The soft-matte writeable face lets you mark fixes, ETAs, and pilotage cues, then clean down between passages.

On-board & ashore use

🧭 Passage & pilotage planning — Plot waypoints, tidal gates, and contingencies before departure.
📒 Crew briefings — At-a-glance harbour layout for roles, calls, and nav references.
🛠️ Club/office display — Durable laminated option for training rooms and noticeboards.
🎁 Practical gift — A dependable working chart for local and visiting skippers.

Specifications

Field	Detail
Chart Number	AUS 200
Title	Australia — East Coast — New South Wales — Port Jackson
Geographic Location	Australia
Scale (main)	1:20,000
Projection	Universal Transverse Mercator
North / South Limits	33°46.43′ S / 33°53.50′ S
East / West Limits	151°19.55′ E / 151°06.15′ E
Publication Date (main)	02-Aug-1972
Latest Edition (main)	29-Sep-2023
Subchart	Parramatta River — 1:20,000 — 33°48.92′ S to 33°50.90′ S; 151°06.48′ E to 151°01.45′ E — Pub 30-Oct-2023 / Ed. 29-Sep-2023
Sheet Size	1100 mm (W) × 770 mm (H)
Available Finishes	Paper (120 gsm matte); Laminated (soft-matte writeable front, gloss back, edge-sealed)
Inks	Pigment-based, fade-resistant
Origin	Printed in Australia

Important note (mariner’s guidance)

Ideal for planning, briefing, education, and display. For navigation underway, always use the latest official hydrographic chart or approved ECDIS with current Notices to Mariners and local guidance. Conditions and aids can change.

Line up for Sydney Harbour with confidence

Choose your finish above and add to cart — locally printed, hand-checked, and shipped with care.
