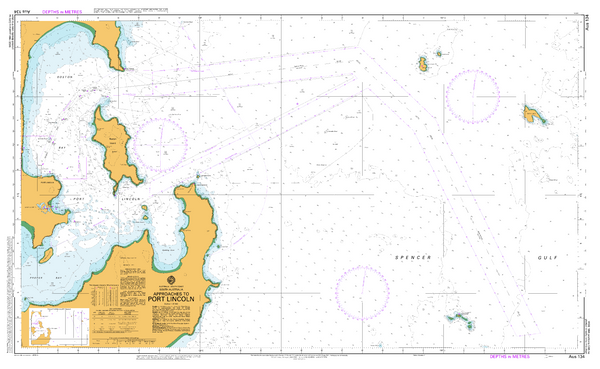

AUS 134 — Approaches to Port Lincoln, SA Nautical Chart
For skippers, pilots, and coastal crews transiting the Port Lincoln approach lanes
Converge on the channel with confidence using AUS 134. Purpose-built for approach and landfall at 1:37,500 on Universal Transverse Mercator (UTM)—ideal for plotting leads, traffic lanes, turning points, and waypoint checks into one of South Australia’s key deepwater ports.
Why skippers choose this chart
-
🧭 Built for harbour approach — Main sheet at 1:37,500 for the Port Lincoln sectors.
-
🚢 Traffic & approach awareness — Helpful for aligning fairways, leads, and landfall bearings.
-
🛰️ Universal Transverse Mercator — Clean projection for bearings and GPS plotting.
-
📍 Exact bounds — All four limits listed for quick position checks (see below).
-
🗺️ Deck-ready materials — Writeable laminate front face for chart-correction pencils.
-
🇦🇺 Printed in Australia — Colour-managed, hand-checked.
Coverage
-
Main Chart — AUS 134: Australia South Coast · South Australia · Approaches to Port Lincoln
-
Scale: 1:37,500 · Projection: Universal Transverse Mercator
-
Bounds: N 34°36.92′ S · S 34°50.20′ S · E 136°18.60′ E · W 135°51.20′ E
-
Publication: 09-Mar-1977 · Latest Edition: 22-Mar-2013
-
Premium materials & finishes
-
Paper (120 gsm matte) — Crisp, flexible and chart-table friendly; ideal under nav-station glass.
-
Laminated (soft-matte front / gloss back, edge-sealed) — Front side is low-glare and writeable with chart-correcting/grease pencils; gloss back adds rigidity. Wipes clean with a soft cloth.
Note: We’ve intentionally configured the laminate with a soft-matte writeable face and a gloss reverse so you can annotate pilotage notes, fixes and ETAs directly on the chart, then clean down between passages.
On-board & ashore use
-
🧭 Passage planning — Plot approaches, turning basins, and contingency options.
-
📒 Crew briefings — Clear layout for pilotage notes, leads/marks, and waypoint verification.
-
🛠️ Bridge/club display — Durable laminated option for noticeboards and training rooms.
-
🎁 Gift for skippers — A practical, good-looking approach chart for SA crews.
Specifications
| Field | Detail |
|---|---|
| Chart Number | AUS 134 |
| Title | Australia South Coast — South Australia — Approaches to Port Lincoln |
| Geographic Location | Australia |
| Scale (main) | 1:37,500 |
| Projection | Universal Transverse Mercator |
| North / South Limits | 34°36.92′ S / 34°50.20′ S |
| East / West Limits | 136°18.60′ E / 135°51.20′ E |
| Publication Date | 09-Mar-1977 |
| Latest Edition | 22-Mar-2013 |
| Sheet Size | 1100 mm (W) × 770 mm (H) |
| Available Finishes | Paper (120 gsm matte); Laminated (soft-matte writeable front, gloss back, edge-sealed) |
| Inks | Pigment-based, fade-resistant |
| Origin | Printed in Australia |
Important note (mariner’s guidance)
This product is ideal for planning, briefing, education, and display. For underway navigation, always carry and consult the latest official hydrographic chart or approved ECDIS and current Notices to Mariners. Local conditions and aids may change.
Ready to make your approach to Port Lincoln?
Select your finish above and add to cart. We’ll print locally, hand-check, and ship with care.
