AUS 167 — Port Dalrymple, TAS Nautical Chart
For skippers, pilots, and coastal crews transiting the Tamar River approaches to Port Dalrymple
Make precise entries to the Tamar with AUS 167. This approach chart delivers close-quarters coverage at 1:25,000 on Universal Transverse Mercator (UTM)—ideal for plotting leads, turns, and waypoints into Port Dalrymple, with dedicated Bell Bay and Long Reach subcharts for berth approaches.
Why skippers choose this chart
-
🧭 Built for harbour approach — Main sheet at 1:25,000 for the Port Dalrymple sectors.
-
🚢 Traffic & approach awareness — Aligns fairways, leads, and landfall bearings with confidence.
-
🛰️ Universal Transverse Mercator — Clean bearings and GPS plotting at close quarters.
-
📍 Exact bounds — All four limits listed for quick position checks (see below).
-
🗺️ Deck-ready materials — Writeable laminate front face for chart-correction pencils.
-
🇦🇺 Printed in Australia — Colour-managed, hand-checked.
Coverage
-

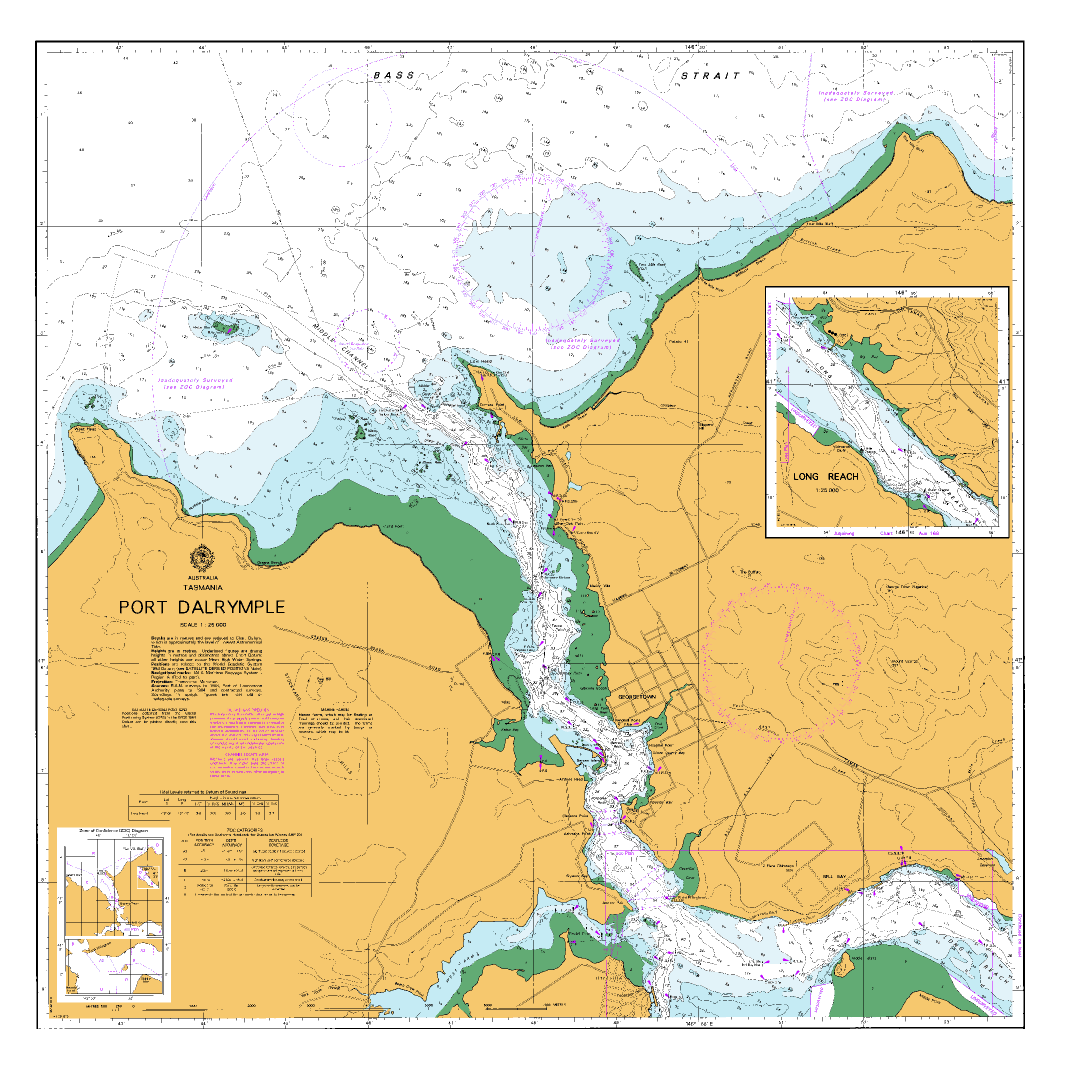

Main Chart — AUS 167: Australia · Tasmania · Port Dalrymple
-
Scale: 1:25,000 · Projection: Universal Transverse Mercator
-
Bounds: N 41°00.41′ S · S 41°09.25′ S · E 146°53.80′ E · W 146°42.14′ E
-
Publication: 21-Mar-1997 · Latest Edition: 16-Aug-2024
-
-
Subchart — AUS 167/1: Bell Bay
-
Scale: 1:10,000 · Projection: Universal Transverse Mercator
-
Bounds: N 41°07.71′ S · S 41°09.71′ S · E 146°53.55′ E · W 146°48.88′ E
-
Publication: 21-Mar-1997 · Latest Edition: 16-Aug-2024
-
-

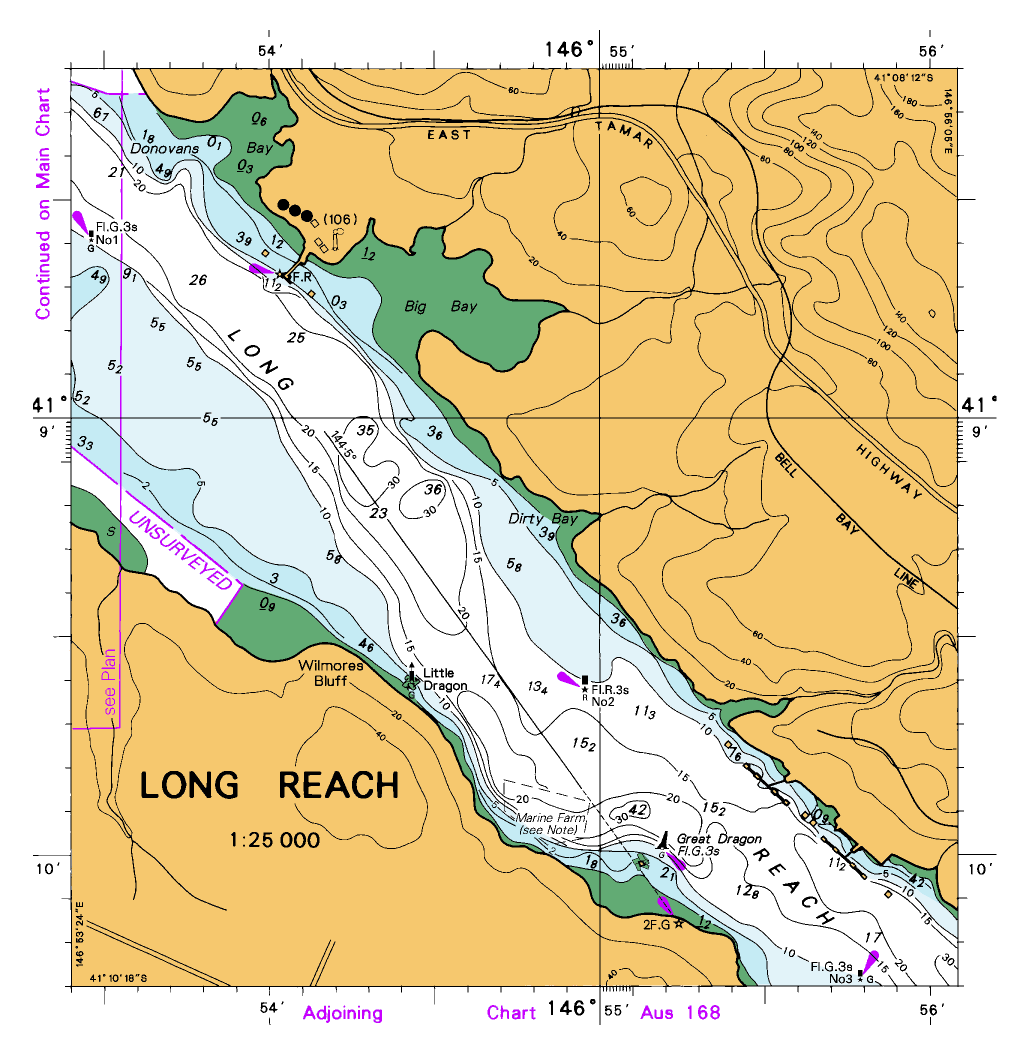

Subchart — AUS 167/2: Long Reach
-
Scale: 1:25,000 · Projection: Universal Transverse Mercator
-
Bounds: N 41°08.20′ S · S 41°10.30′ S · E 146°56.08′ E · W 146°53.40′ E
-
Publication: 21-Mar-1997 · Latest Edition: 16-Aug-2024
-
Premium materials & finishes
-
Paper (120 gsm matte) — Crisp, flexible and chart-table friendly; ideal under nav-station glass.
-
Laminated (soft-matte front / gloss back, edge-sealed) — Front side is low-glare and writeable with chart-correcting/grease pencils; gloss back adds rigidity. Wipes clean with a soft cloth.
Note: We’ve intentionally configured the laminate with a soft-matte writeable face and a gloss reverse so you can annotate pilotage notes, fixes and ETAs directly on the chart, then clean down between passages.
On-board & ashore use
-
🧭 Pilotage planning — Plot approaches, turning basins and contingency options.
-
📒 Crew briefings — Clear layout for marks, lights and waypoint verification.
-
🛠️ Bridge/club display — Durable laminated option for noticeboards and training rooms.
-
🎁 Gift for skippers — A practical, good-looking approach chart for TAS crews.
Specifications
| Field | Detail |
|---|---|
| Chart Number | AUS 167 |
| Title | Australia — Tasmania — Port Dalrymple |
| Geographic Location | Australia |
| Scale (main) | 1:25,000 |
| Projection | Universal Transverse Mercator |
| North / South Limits | 41°00.41′ S / 41°09.25′ S |
| East / West Limits | 146°53.80′ E / 146°42.14′ E |
| Publication Date | 21-Mar-1997 |
| Latest Edition | 16-Aug-2024 |
| Sheet Size | 770 mm (W) × 1100 mm (H) |
| Available Finishes | Paper (120 gsm matte); Laminated (soft-matte writeable front, gloss back, edge-sealed) |
| Inks | Pigment-based, fade-resistant |
| Origin | Printed in Australia |
Important note (mariner’s guidance)
This product is ideal for planning, briefing, education, and display. For underway navigation, always carry and consult the latest official hydrographic chart or approved ECDIS and current Notices to Mariners. Local conditions and aids may change.
Ready to make your approach to Port Dalrymple?
Select your finish above and add to cart. We’ll print locally, hand-check, and ship with care.
