AUS 73 — Plans in Western Australia (Sheet 4), WA Nautical Chart
For skippers, pilots, and coastal crews working Cape Cuvier & Carnarvon
Two large-scale harbour plans for Cape Cuvier and Carnarvon, delivering close-quarters clarity at 1:10,000 and 1:12,500 on UTM — ideal for precise pilotage, berth approaches, and waypoint checks along WA’s mid-west coast.
Why skippers choose this chart
-
🧭 Harbour-scale detail — 1:10,000 (Cape Cuvier) and 1:12,500 (Carnarvon) for approaches, swing basins, and wharf work.
-
🚢 Traffic & hazards awareness — Clear depiction of channels, aids to navigation, reefs, and working waterfronts.
-
🛰️ UTM grid precision — Straightforward plotting for fixes, bearings, and cross-checks.
-
📍 Exact bounds — All limits listed below for quick position checks.
-
🗺️ Deck-ready materials — Soft-matte writeable laminate front for correction/grease pencils.
-
🇦🇺 Printed in Australia — Colour-managed, hand-checked.
Coverage
-

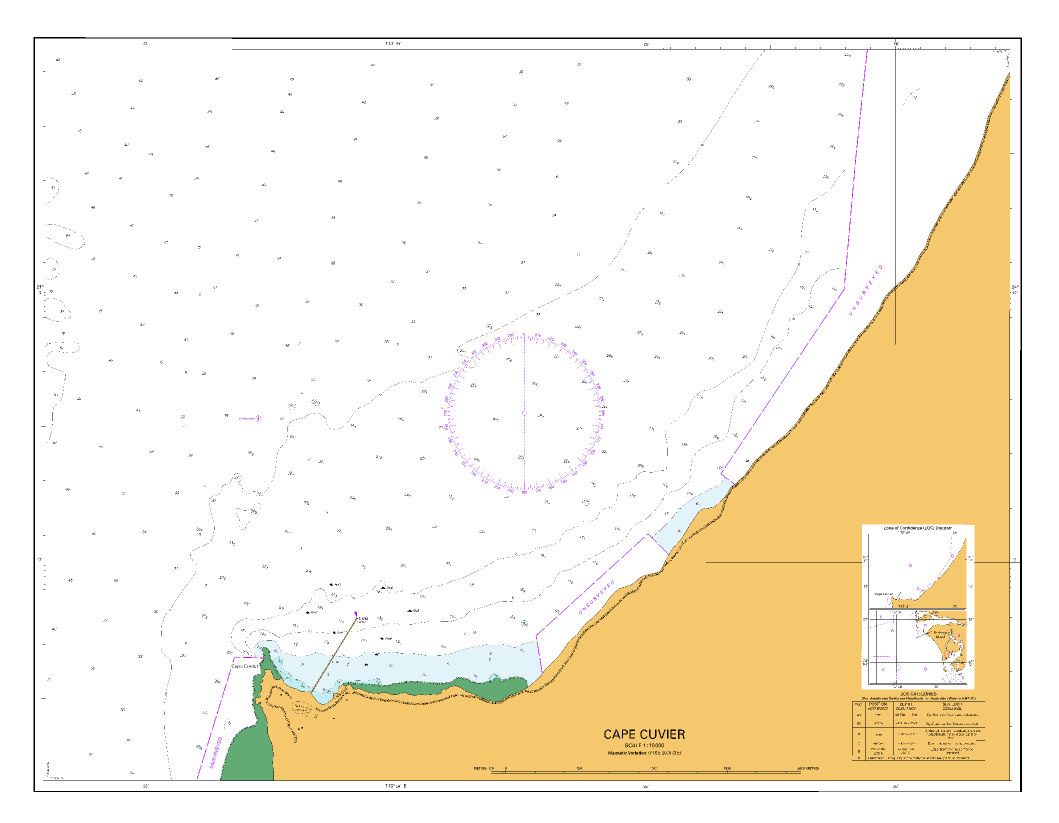

Plan — AUS 73/1: Cape Cuvier
-
Scale: 1:10,000 · Projection: Universal Transverse Mercator
-
Bounds: N 24°11.12′ S · S 24°13.80′ S · E 113°26.46′ E · W 113°22.60′ E
-
Publication: 07-Nov-2008 · Latest Edition: 07-Nov-2008
-
-

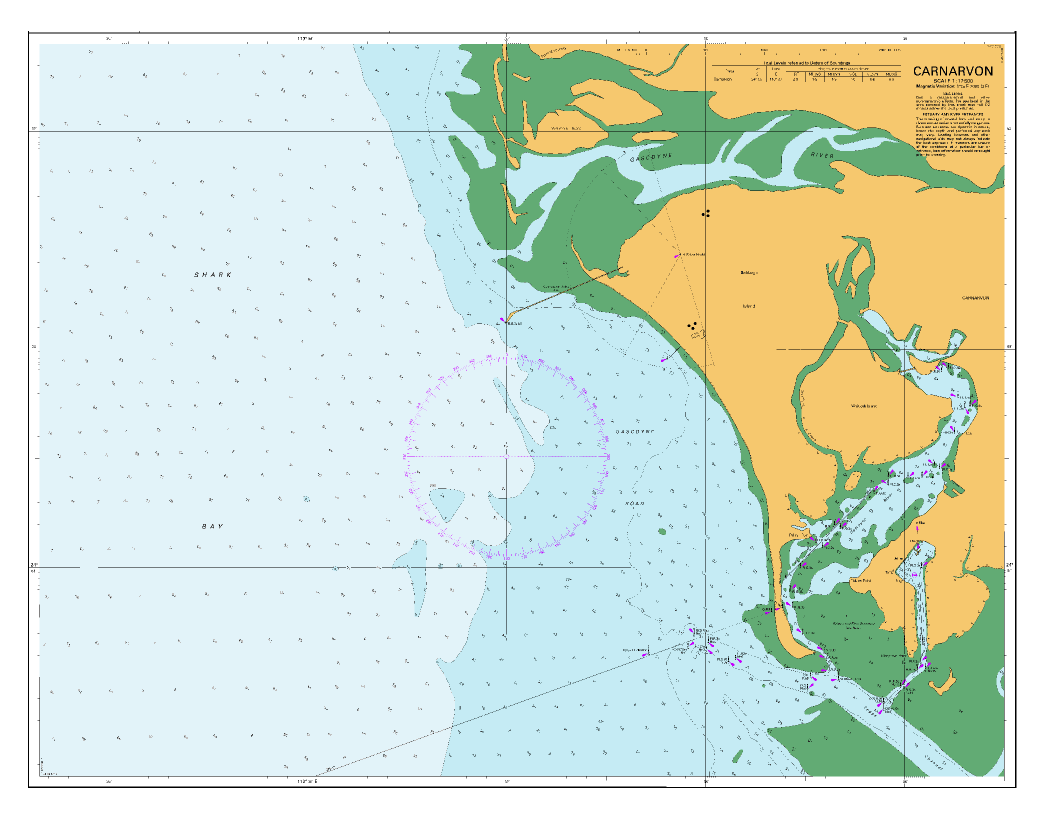

Plan — AUS 73/2: Carnarvon
-
Scale: 1:12,500 · Projection: Universal Transverse Mercator
-
Bounds: N 24°51.60′ S · S 24°54.96′ S · E 113°39.50′ E · W 113°34.65′ E
-
Publication: 07-Nov-2008 · Latest Edition: 07-Nov-2008
-
Premium materials & finishes
-
Paper (120 gsm matte) — Crisp, flexible and chart-table friendly; ideal under nav-station glass.
-
Laminated (soft-matte front / gloss back, edge-sealed) — Front is low-glare and writeable with chart-correction/grease pencils; gloss back adds rigidity. Wipes clean with a soft cloth.
Note: We use a soft-matte writeable face with a gloss reverse so you can annotate fixes, tides and ETAs directly on the chart, then clean down between passages.
On-board & ashore use
-
🧭 Pilotage & berth approaches — Plot channels, clearing bearings, and contingency turns.
-
📒 Crew briefings — Clear layouts for marks, hazards, and waypoint verification.
-
🛠️ Bridge/club display — Durable laminated option for training rooms and noticeboards.
-
🎁 Gift for skippers — Practical WA harbour plans for local crews.
Specifications
| Field | Detail |
|---|---|
| Chart Number | AUS 73 (Sheet 4) |
| Title | Plans in Western Australia (Sheet 4) — Cape Cuvier; Carnarvon |
| Geographic Location | Australia |
| Scale (main) | 1:10,000 (Cape Cuvier); 1:12,500 (Carnarvon) |
| Projection | Universal Transverse Mercator (UTM) |
| North / South Limits | 24°11.12′ S / 24°54.96′ S (combined envelope of the two plans) |
| East / West Limits | 113°39.50′ E / 113°22.60′ E (combined envelope of the two plans) |
| Publication Date | 07-Nov-2008 |
| Latest Edition | 07-Nov-2008 |
| Sheet Size | 770 mm (W) × 1100 mm (H) |
| Available Finishes | Paper (120 gsm matte); Laminated (soft-matte writeable front, gloss back, edge-sealed) |
| Inks | Pigment-based, fade-resistant |
| Origin | Printed in Australia |
Important note (mariner’s guidance)
This product is ideal for planning, briefing, education, and display. For underway navigation, always carry and consult the latest official hydrographic chart or approved ECDIS and current Notices to Mariners. Local conditions and aids may change.
