AUS 255 — Approaches to Abbot Point, QLD Nautical Chart

For skippers, pilots, and coastal crews working the Abbot Point approaches

Line up confidently for Abbot Point and its offshore terminal. AUS 255 delivers approach-scale detail at 1:25,000, with a dedicated 1:12,500 plan for Abbot Point Wharf—ideal for plotting buoyed fairways, shaping landfall bearings, bunkering, and inshore manoeuvres.

Why skippers choose this chart

• 🧭 Made for approach work — Main sheet at 1:25,000 for the full approach sector and coastal context.

• ⚓ Terminal precision — Abbot Point Wharf inset at 1:12,500 for berth approaches and swing areas.

• 🛰️ Universal Transverse Mercator — Clean projection for bearings and GPS plotting.

• 📍 Exact bounds — All four limits listed for quick position checks (see below).

• 🗺️ Deck-ready materials — Writeable laminate front face for chart-correction pencils.

• 🇦🇺 Printed in Australia — Colour-managed, hand-checked.

Coverage & insets

• Main Chart — AUS 255: Australia East Coast · Queensland · Approaches to Abbot Point

  • Scale: 1:25,000 · Projection: Universal Transverse Mercator

  • Bounds: N 19°43.40′ S · S 19°57.41′ S · E 148°10.42′ E · W 148°01.06′ E

  • Publication: 31-Aug-1984 · Latest Edition: 06-Aug-2021

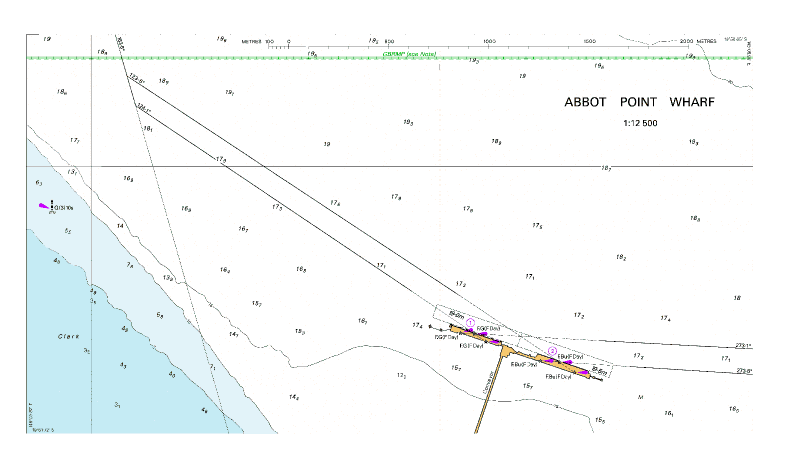

• Subchart — AUS 255 (Abbot Point Wharf)

  • Scale: 1:12,500 · Projection: Universal Transverse Mercator

  • Bounds: N 19°50.64′ S · S 19°51.72′ S · E 148°05.90′ E · W 148°03.81′ E

  • Publication / Edition: 31-Aug-1984 / 06-Aug-2021

Premium materials & finishes

• Paper (120 gsm matte) — Crisp, flexible and chart-table friendly; ideal under nav-station glass.

• Laminated (soft-matte front / gloss back, edge-sealed) — Low-glare, writeable face for notes and corrections; gloss back adds rigidity and wipes clean.

Note: We’ve intentionally configured the laminate with a soft-matte writeable face and a gloss reverse so you can annotate pilotage notes, fixes and ETAs directly on the chart, then clean down between passages.

On-board & ashore use

• 🧭 Passage planning — Pre-plot approaches, tide windows and contingencies.

• 📒 Crew briefings — At-a-glance layout for pilotage notes and waypoint checks.

• 🛠️ Port/club display — Durable laminated option for noticeboards and training rooms.

• 🎁 Gift for skippers — A practical, good-looking chart for locals and visiting crews.

Specifications

Important note (mariner’s guidance)

This product is ideal for planning, briefing, education, and display. For underway navigation, always carry and consult the latest official hydrographic chart or approved ECDIS and current Notices to Mariners. Local conditions and aids may change.

Ready to plot your approach to Abbot Point?

Select your finish above and add to cart. We’ll print locally, hand-check, and ship with care.
