AUS 250 - Plans of Hay Point and Mackay Harbour

AUS 250 - Plans of Hay Point and Mackay Harbour Nautical Chart

$49.95

Afterpay is only available for orders between $50.00 and $1000.00 More info

AUS 250 — Plans of Hay Point & Mackay Harbour, QLD Nautical Chart

For skippers, pilots, and coastal crews working Dalrymple Bay, Hay Point & Mackay Harbour

Get harbour-scale clarity where it counts. AUS 250 is a dedicated plans sheet featuring two detailed insets—Hay Point (1:15,000) and Mackay Harbour (1:10,000)—both on UTM projection for clean GPS plotting. Ideal for berth approaches, buoyed fairways, swing basins, and terminal operations.

Why skippers choose this chart

🧭 Harbour-grade detail — 1:15,000 and 1:10,000 for safe pilotage and berth planning.
🚢 Terminal & marina focus — Leads, lateral marks, swing basins, wharves and exclusion zones at a glance.
🛰️ Universal Transverse Mercator — Straightforward bearings and waypoints with minimal conversion fuss.
🗂️ Two targeted plans — One sheet covers both Hay Point and Mackay Harbour operations.
🗺️ Deck-ready materials — Writeable laminate front face for chart-correction/grease pencils.

Coverage (two insets on one sheet)

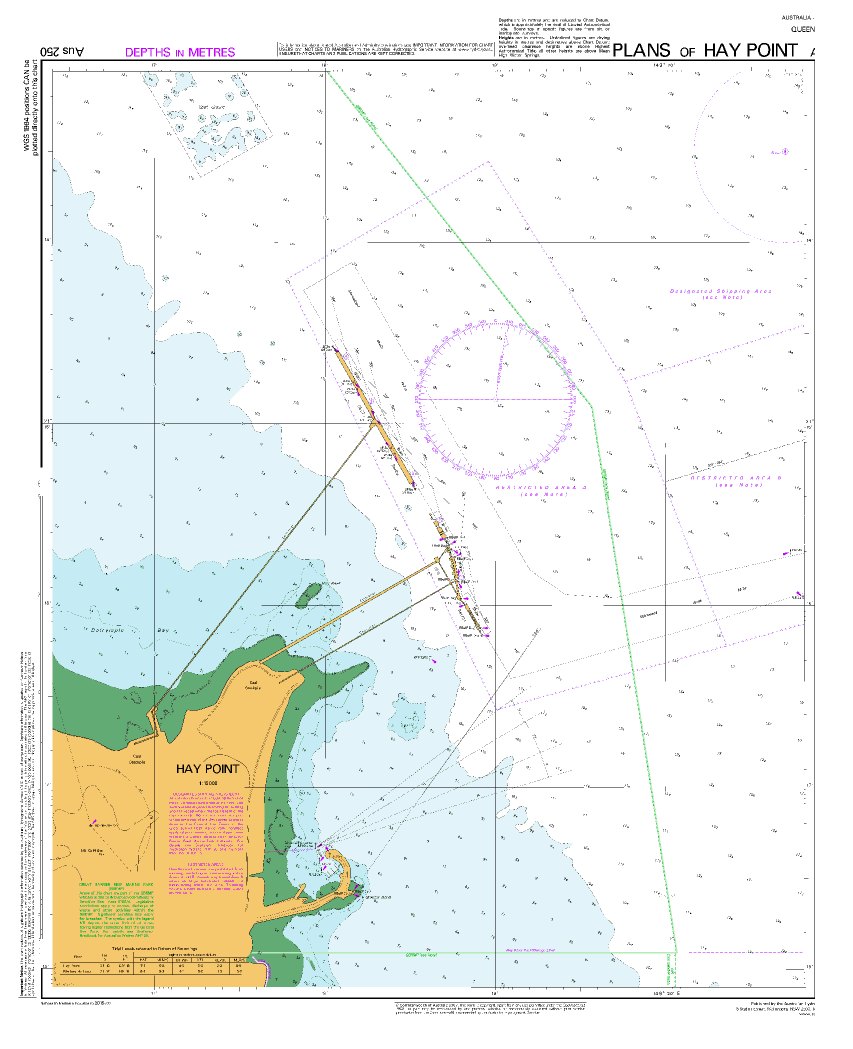

Subchart — Hay Point
- Scale: 1:15,000 · Projection: Universal Transverse Mercator
- Bounds: N 21°13.06′ S · S 21°18.10′ S · E 149°20.81′ E · W 149°16.40′ E
- Publication: 15-Oct-1999 · Latest Edition: 31-Mar-2023

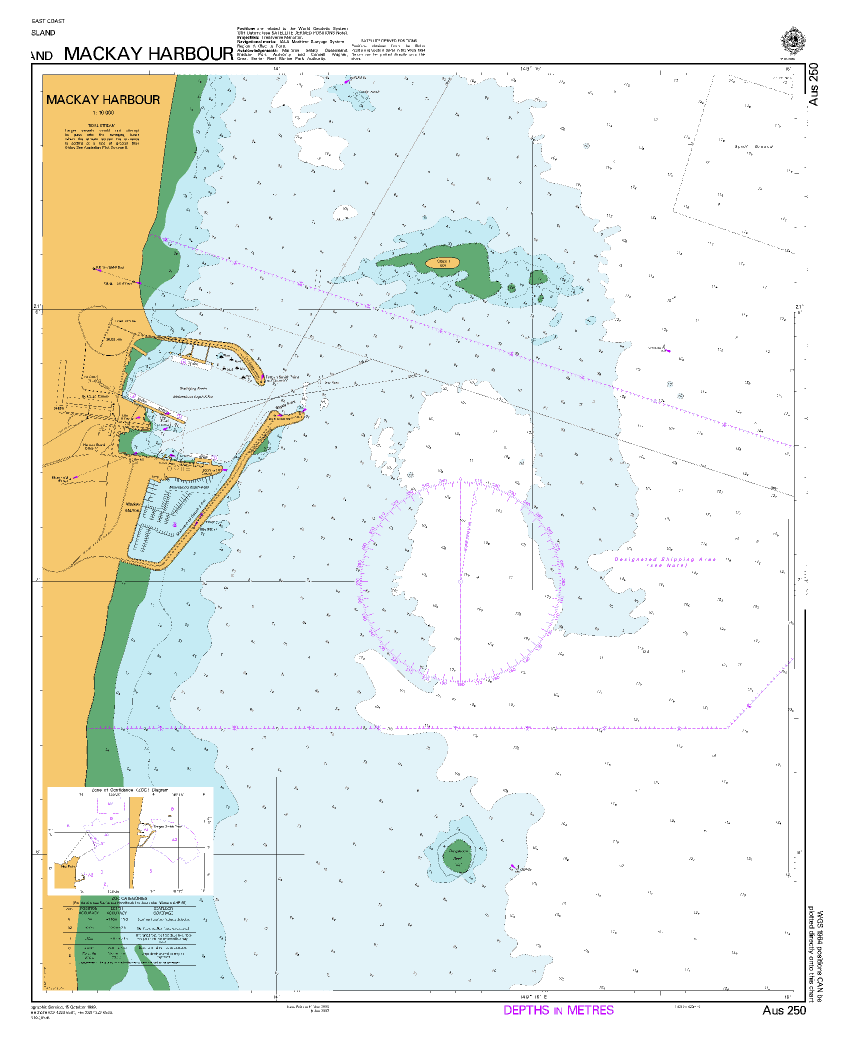

Subchart — Mackay Harbour
- Scale: 1:10,000 · Projection: Universal Transverse Mercator
- Bounds: N 21°05.14′ S · S 21°08.50′ S · E 149°16.02′ E · W 149°13.08′ E
- Publication: 15-Oct-1999 · Latest Edition: 10-Nov-2023
Parent sheet: AUS 250 — Plans of Hay Point and Mackay Harbour (Australia — East Coast — Queensland)

Premium materials & finishes

Paper (120 gsm matte) — Crisp, flexible and chart-table friendly; ideal under nav-station glass.
Laminated (soft-matte front / gloss back, edge-sealed) — Low-glare, writeable face for live corrections; gloss back adds rigidity and wipes clean.

Skipper’s note: The soft-matte writeable face is specified so you can mark fixes, ETAs and pilotage cues, then clean down between transits.

On-board & ashore use

🧭 Pilotage planning — Plot transits, tidal windows and contingency turns before approach.
📒 Crew briefings — Clear layout for roles, calls and nav references.
🛠️ Club/office display — Durable laminated option for training rooms and noticeboards.
🎁 Giftable — A dependable working chart for local and visiting skippers.

Specifications

Field	Hay Point	Mackay Harbour
Chart Number	AUS 250 (Subchart 1)	AUS 250 (Subchart 2)
Title	Hay Point	Mackay Harbour
Geographic Location	Australia	Australia
Scale	1:15,000	1:10,000
Projection	Universal Transverse Mercator	Universal Transverse Mercator
North / South Limits	21°13.06′ S / 21°18.10′ S	21°05.14′ S / 21°08.50′ S
East / West Limits	149°20.81′ E / 149°16.40′ E	149°16.02′ E / 149°13.08′ E
Publication Date	15-Oct-1999	15-Oct-1999
Latest Edition	31-Mar-2023	10-Nov-2023
Sheet Size	-	1100 mm (W) × 770 mm (H)
Available Finishes	-	Paper (120 gsm matte); Laminated (soft-matte writeable front, gloss back, edge-sealed)
Inks	-	Pigment-based, fade-resistant
Origin	-	Printed in Australia

Mariner’s guidance

Perfect for planning, briefings, education, and display. For navigation underway—especially in dredged, buoyed channels and terminal areas—always carry and consult the latest official hydrographic chart or approved ECDIS with current Notices to Mariners and local guidance. Conditions and aids can change.

Work Hay Point & Mackay with confidence

Select your finish above and add to cart. We’ll print locally, hand-check, and ship with care.
