AUS 116 — West & South Coast, WA Nautical Chart
For skippers, pilots, and coastal crews working WA’s west & south-coast harbours
A multi-plan sheet delivering large-scale detail for Flinders Bay, Hamelin Bay, Entrance to Mandurah Estuary, Port Geographe Marina, Warnbro Sound, Starvation Boat Harbour, and Mary Ann Haven — all on UTM for crisp plotting and close-quarters pilotage.
Why skippers choose this chart
-
🧭 Harbour-scale clarity — Seven focused plans for approaches, swing basins, and wharf work.
-
🚢 Traffic & hazards awareness — Clear depiction of channels, aids, drying banks, reefs, and inshore features.
-
🛰️ UTM grid precision — Straightforward plotting for fixes, bearings, and cross-checks.
-
📍 Exact bounds — All plan limits listed below for fast position checks.
-
🗺️ Deck-ready materials — Soft-matte writeable laminate face for correction/grease pencils.
-
🇦🇺 Printed in Australia — Colour-managed, hand-checked.
Coverage
-

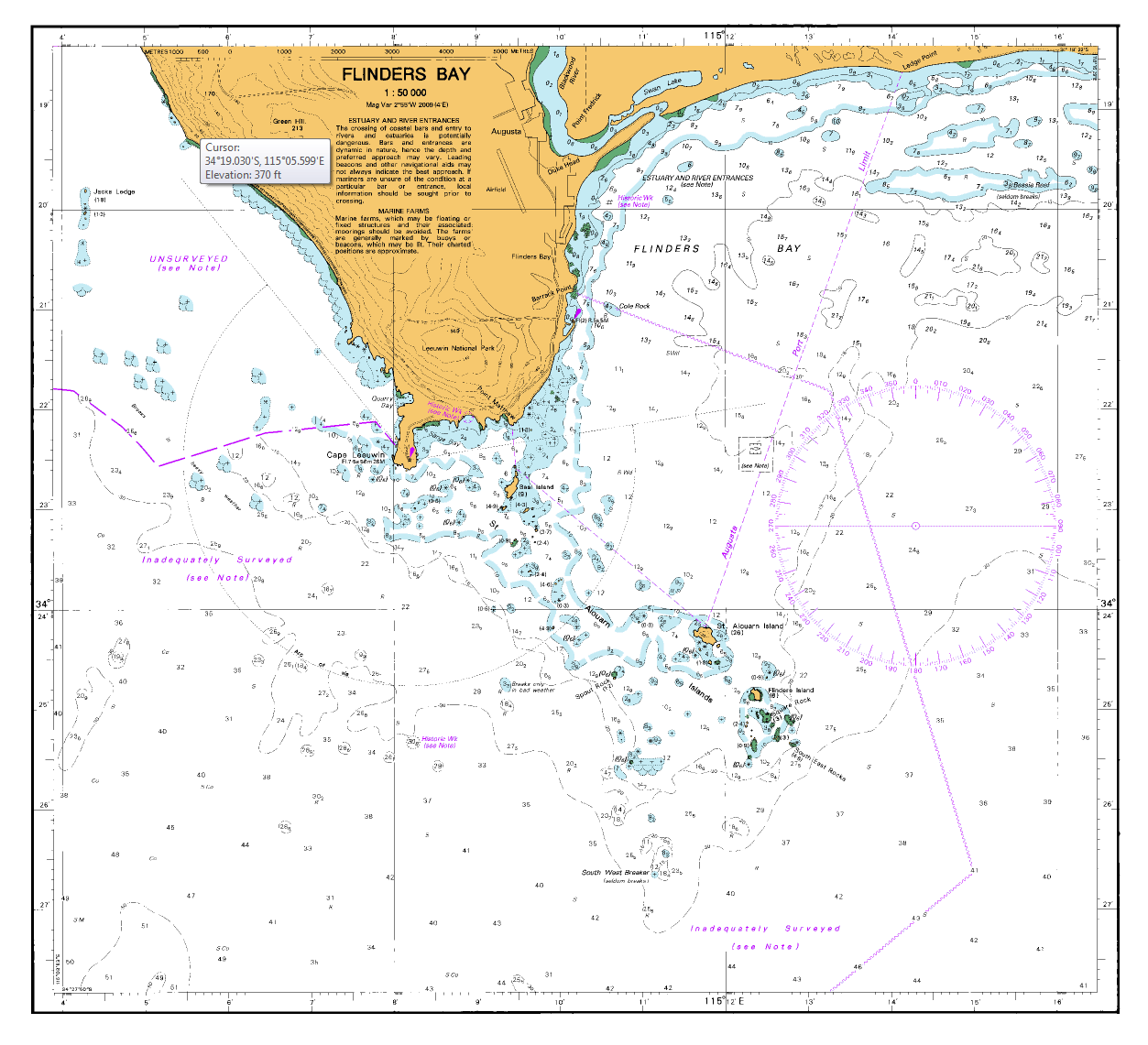

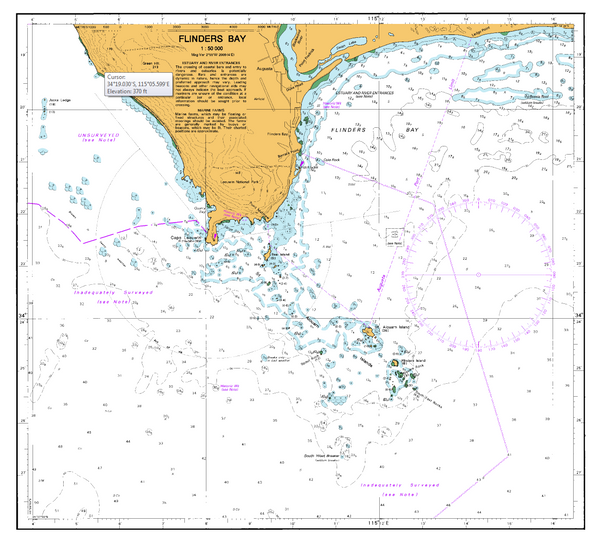

Plan — AUS 116/1: Flinders Bay
-
Scale: 1:50,000 · Projection: Universal Transverse Mercator
-
Bounds: N 34°18.37′ S · S 34°27.83′ S · E 115°16.48′ E · W 115°03.89′ E
-
Publication: 27-May-1981 · Latest Edition: 18-Mar-2022
-
-

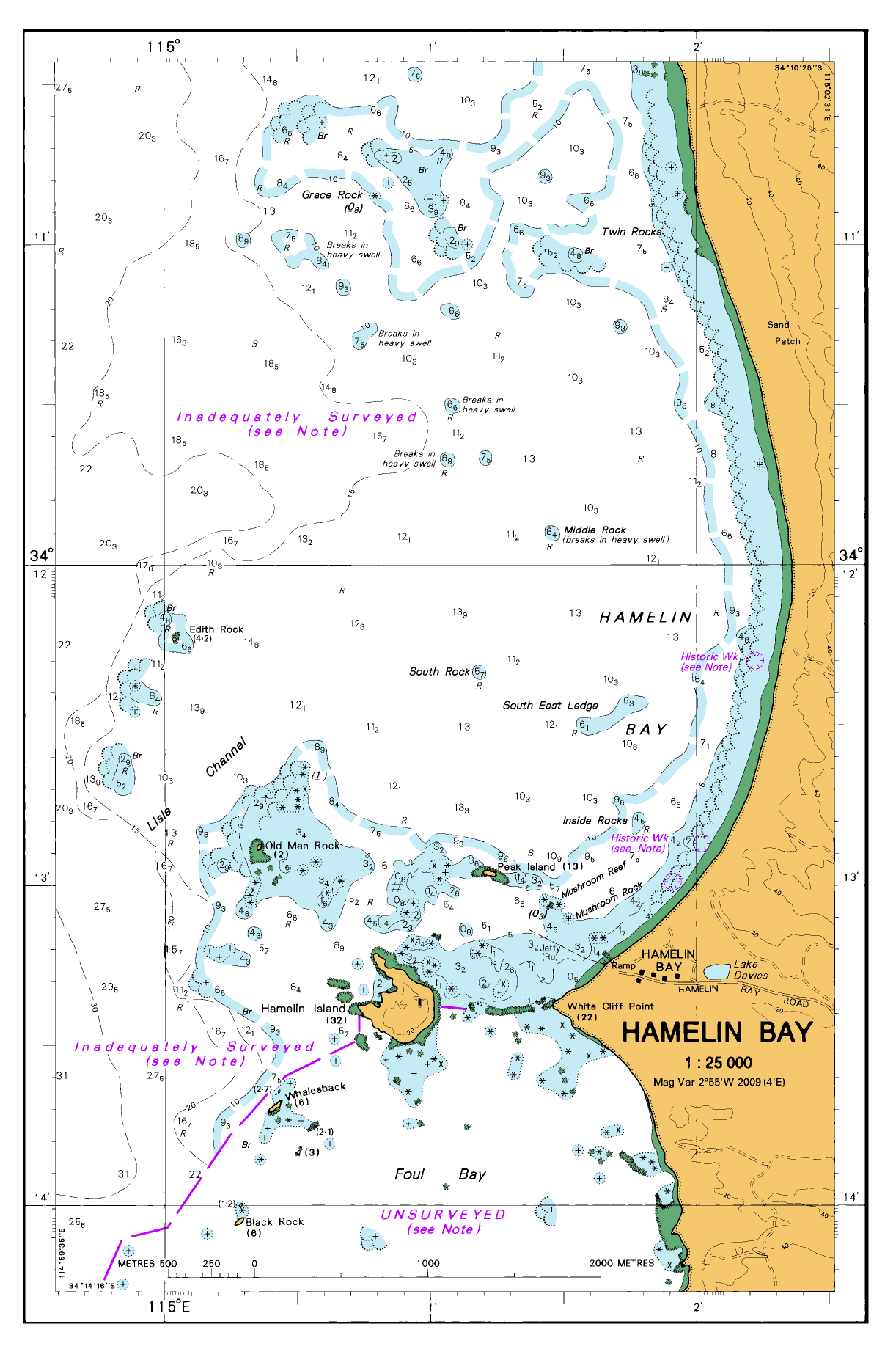

Plan — AUS 116/2: Hamelin Bay
-
Scale: 1:25,000 · Projection: Universal Transverse Mercator
-
Bounds: N 34°10.43′ S · S 34°14.27′ S · E 115°02.52′ E · W 114°59.59′ E
-
Publication: 27-May-1981 · Latest Edition: 02-Apr-2024
-
-
Plan — AUS 116/3: Entrance to Mandurah Estuary
-
Scale: 1:15,000 · Projection: Universal Transverse Mercator
-
Bounds: N 32°30.08′ S · S 32°32.18′ S · E 115°44.29′ E · W 115°40.59′ E
-
Publication: 27-May-1981 · Latest Edition: 18-Mar-2022
-
-

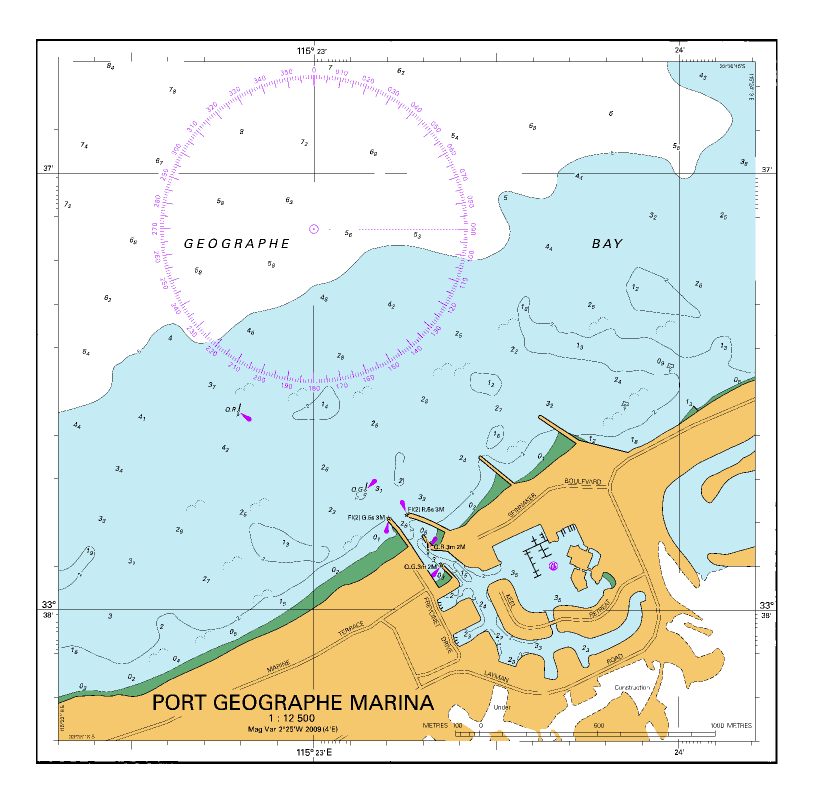

Plan — AUS 116/4: Port Geographe Marina
-
Scale: 1:12,500 · Projection: Universal Transverse Mercator
-
Bounds: N 33°36.74′ S · S 33°38.30′ S · E 115°24.21′ E · W 115°22.30′ E
-
Publication: 27-May-1981 · Latest Edition: 02-Apr-2024
-
-

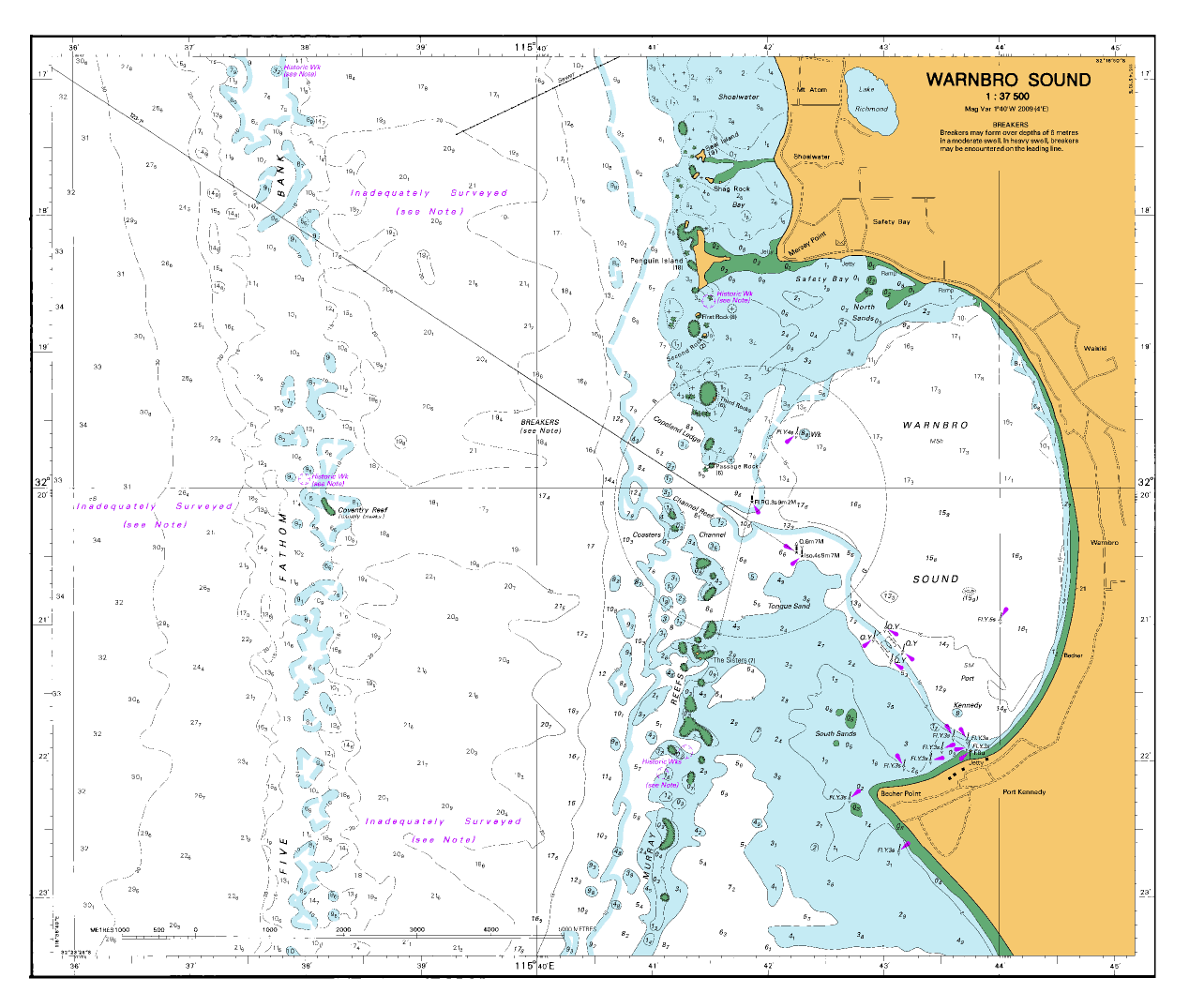

Plan — AUS 116/5: Warnbro Sound
-
Scale: 1:37,500 · Projection: Universal Transverse Mercator
-
Bounds: N 32°16.84′ S · S 32°23.43′ S · E 115°45.17′ E · W 115°35.82′ E
-
Publication: 27-May-1981 · Latest Edition: 02-Apr-2024
-
-

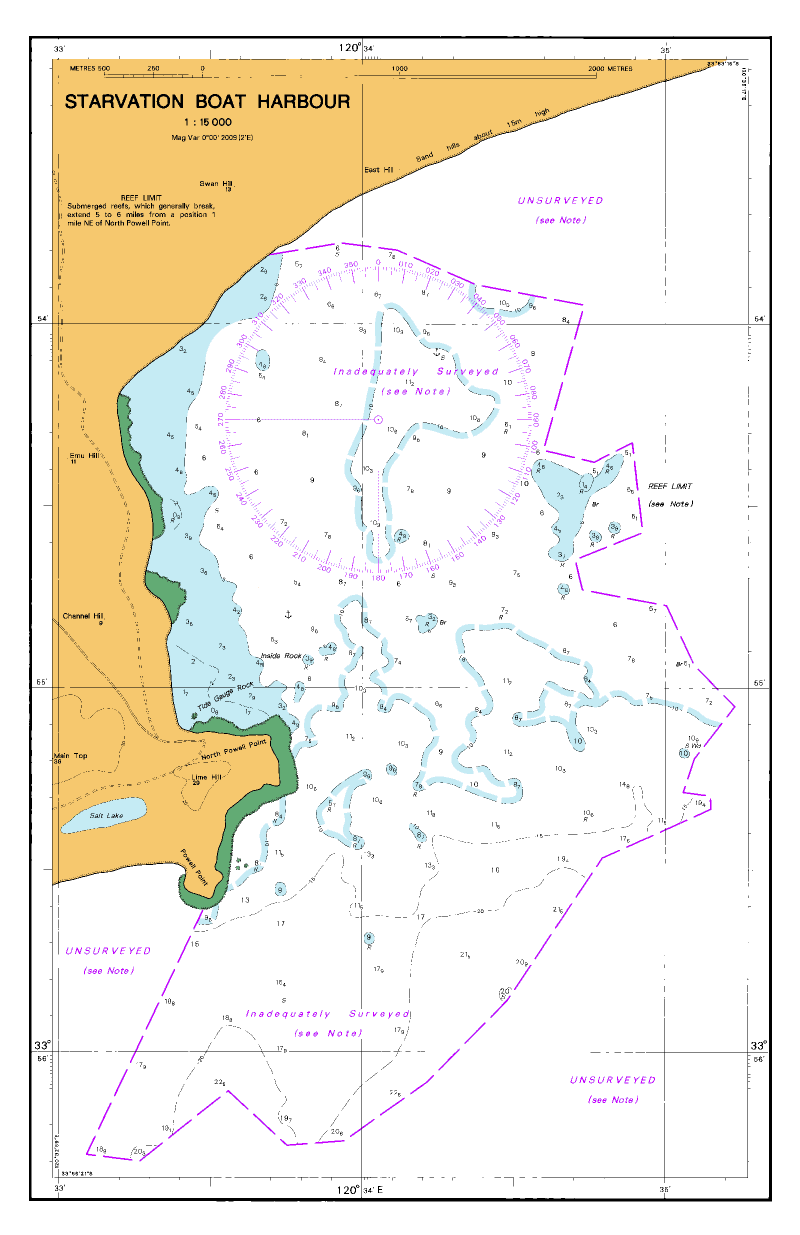

Plan — AUS 116/6: Starvation Boat Harbour
-
Scale: 1:15,000 · Projection: Universal Transverse Mercator
-
Bounds: N 33°53.27′ S · S 33°56.35′ S · E 120°35.27′ E · W 120°32.98′ E
-
Publication: 27-May-1981 · Latest Edition: 02-Apr-2024
-
-

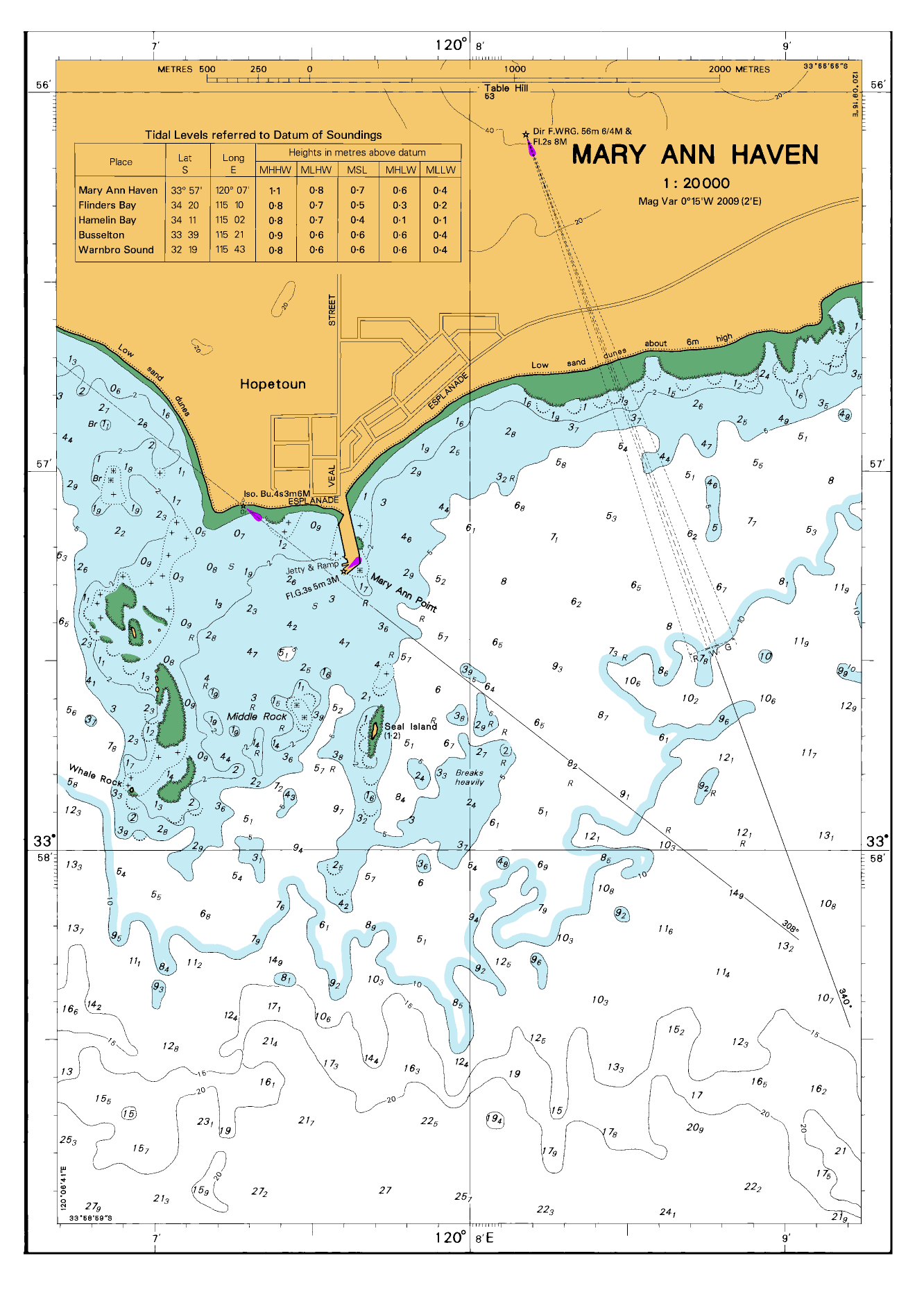

Plan — AUS 116/7: Mary Ann Haven
-
Scale: 1:20,000 · Projection: Universal Transverse Mercator
-
Bounds: N 33°55.92′ S · S 33°58.99′ S · E 120°09.24′ E · W 120°06.69′ E
-
Publication: 27-May-1981 · Latest Edition: 02-Apr-2024
-
Premium materials & finishes
-
Paper (120 gsm matte) — Crisp, flexible and chart-table friendly; ideal under nav-station glass.
-
Laminated (soft-matte front / gloss back, edge-sealed) — Front is low-glare and writeable with chart-correction/grease pencils; gloss back adds rigidity. Wipes clean with a soft cloth.
We use a soft-matte writeable face with a gloss reverse so you can annotate fixes, tides, and ETAs directly on the chart, then clean down between passages.
On-board & ashore use
-
🧭 Pilotage & berth approaches — Plot channels, clearing bearings, and contingency turns.
-
📒 Crew briefings — Clear layouts for marks, hazards, and waypoint verification.
-
🛠️ Bridge/club display — Durable laminated option for training rooms and noticeboards.
-
🎁 Gift for skippers — Practical WA harbour plans for local crews.
Specifications
| Field | Detail |
|---|---|
| Chart Number | AUS 116 |
| Title | West & South Coast (multi-plan sheet) |
| Geographic Location | Australia |
| Scales (plans) | 1:50,000 (Flinders Bay); 1:25,000 (Hamelin Bay); 1:15,000 (Mandurah Entrance); 1:12,500 (Port Geographe Marina); 1:37,500 (Warnbro Sound); 1:15,000 (Starvation Boat Harbour); 1:20,000 (Mary Ann Haven) |
| Projection | Universal Transverse Mercator (UTM) |
| Publication Date | 27-May-1981 |
| Latest Editions | Flinders Bay: 18-Mar-2022; Mandurah Entrance: 18-Mar-2022; others: 02-Apr-2024 |
| Sheet Size | 1100 mm (W) × 770 mm (H) |
| Available Finishes | Paper (120 gsm matte); Laminated (soft-matte writeable front, gloss back, edge-sealed) |
| Inks | Pigment-based, fade-resistant |
| Origin | Printed in Australia |
Important note (mariner’s guidance)
This product is ideal for planning, briefing, education, and display. For underway navigation, always carry and consult the latest official hydrographic chart or approved ECDIS and current Notices to Mariners. Local conditions and aids may change.
Ready to work WA’s west & south-coast harbours?
Select your finish above and add to cart. We’ll print locally, hand-check, and ship with care.
