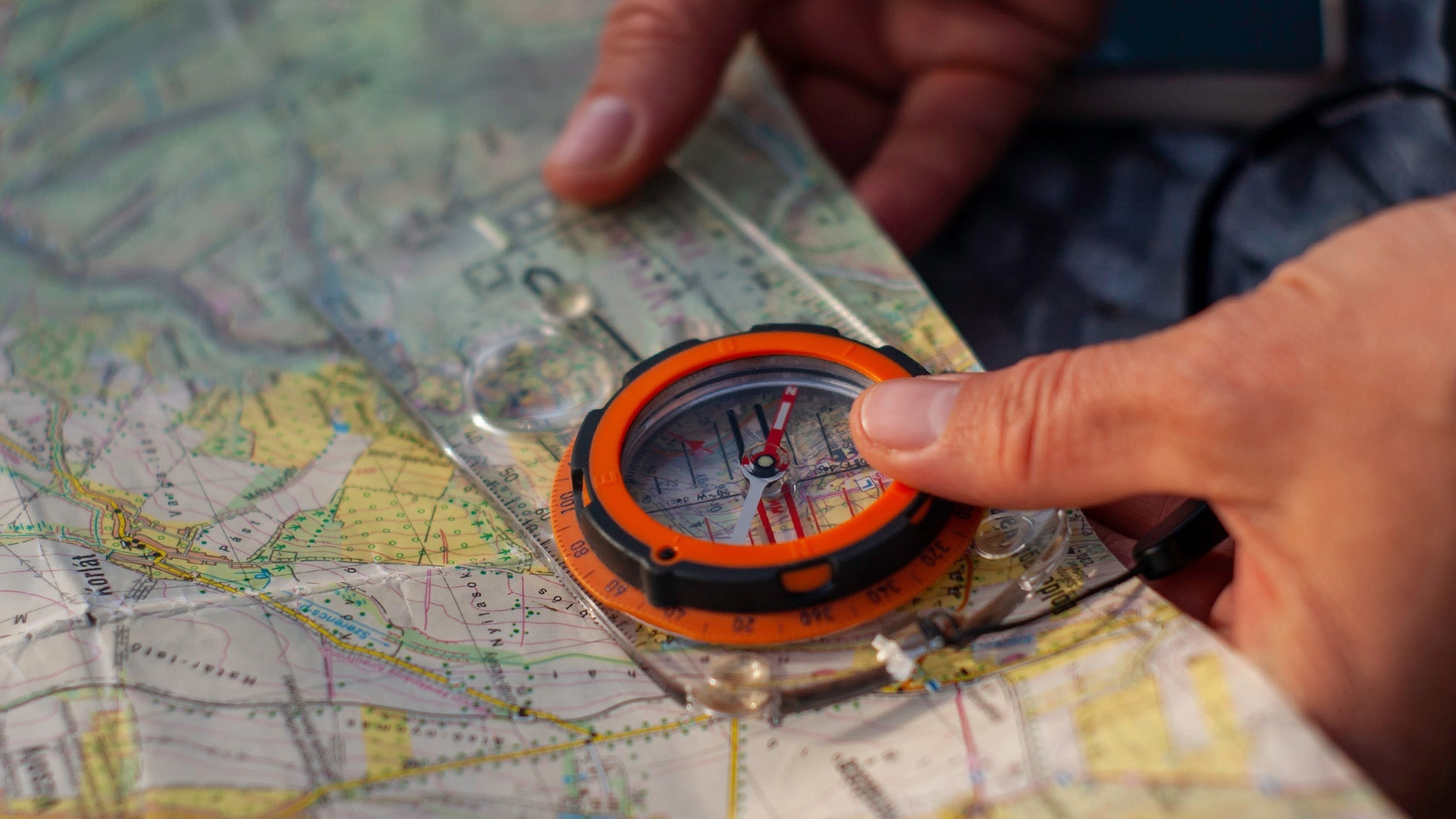

How to Read a Topographic Map

by Christopher O'Keeffe May 31, 2026

Introduction

A topographic map is one of the most powerful analytical tools available for understanding terrain.

Long before satellite imagery, GPS receivers, and digital navigation platforms became commonplace, surveyors, explorers, military personnel, engineers, geologists, and bushwalkers relied on topographic maps to interpret the landscape and make informed decisions in the field.

Despite enormous advances in technology, topographic maps remain indispensable.

The reason is simple.

A GPS receiver can provide a position.

A topographic map provides context.

It reveals the shape of the land, the relationship between terrain features, the location of watercourses, the distribution of vegetation, the position of infrastructure, and the practical implications of moving through a landscape.

A skilled map reader can look at a topographic map and determine:

• The easiest route between two points
• The steepness of a climb
• The location of likely water sources
• Areas prone to flooding
• Potential campsites
• Natural navigation corridors
• Terrain obstacles
• Watershed boundaries
• Likely viewpoints and observation points

These capabilities make topographic maps essential for:

• Bushwalking
• Hiking
• Four-wheel driving
• Surveying
• Environmental management
• Emergency response
• Search and rescue
• Land administration
• Military operations
• Scientific research

This guide examines the principles, terminology, and techniques required to read a topographic map accurately and confidently.

What Is a Topographic Map?

A topographic map is a scaled graphical representation of a portion of the Earth's surface that depicts both natural and human-made features while accurately portraying terrain relief.

Unlike road maps, which primarily focus on transport networks, topographic maps emphasise the physical characteristics of the landscape.

The term "topography" refers to the detailed description of surface features and landforms.

A topographic map therefore attempts to represent:

Relief

The shape and elevation of the land.

Hydrography

Water-related features including:

• Rivers
• Creeks
• Lakes
• Reservoirs
• Wetlands
• Drainage systems

Cultural Features

Human-made infrastructure including:

• Roads
• Tracks
• Railways
• Buildings
• Fences
• Pipelines
• Powerlines

Vegetation

Land cover classifications such as:

• Forest
• Woodland
• Scrub
• Grassland
• Plantation

Geospatial Reference Systems

Coordinate systems and mapping frameworks used to determine location.

These may include:

• Latitude and longitude
• MGA coordinates
• UTM grids
• Datum references
• Projection information

The defining characteristic of a topographic map is its ability to represent three-dimensional terrain on a two-dimensional surface.

This is primarily achieved through contour lines.

The Fundamental Concept of Relief Representation

Before learning to interpret contour lines, it is necessary to understand the concept of relief.

Relief refers to variations in elevation across the landscape.

Every landscape contains relief.

Even seemingly flat terrain contains subtle elevation differences.

Relief may be classified as:

Low Relief

Minimal elevation variation.

Examples:

• Coastal plains
• Floodplains
• Agricultural districts

Moderate Relief

Rolling terrain with noticeable hills and valleys.

Examples:

• Tablelands
• Grazing country
• Undulating landscapes

High Relief

Large elevation changes occurring over relatively short distances.

Examples:

• Mountain ranges
• Alpine environments
• Escarpments

Topographic maps are designed to quantify and communicate relief accurately.

Understanding Contour Lines

Contour lines are the foundation of topographic mapping.

Without a thorough understanding of contours, meaningful terrain interpretation is impossible.

Definition of a Contour Line

A contour line is a line connecting points of equal elevation above a specified vertical datum.

In most Australian mapping, elevations are referenced to mean sea level.

Every point along a contour line has exactly the same elevation.

For example:

A contour labelled 600 metres indicates that every point on that contour lies 600 metres above sea level.

No point on that contour is higher or lower.

This simple principle forms the basis of all terrain interpretation.

Visualising Contours

A useful way to visualise contours is to imagine a hill submerged beneath water.

If the water level is lowered in equal increments, shorelines appear at each level.

These shorelines correspond to contour lines.

The process may be imagined as:

• Water level at 700 metres
• Water level at 690 metres
• Water level at 680 metres
• Water level at 670 metres

Each successive shoreline forms a contour.

The resulting contour pattern accurately describes the shape of the hill.

Contour Interval

The contour interval is the vertical distance between adjacent contour lines.

The contour interval remains constant throughout an individual map sheet.

Common Australian contour intervals include:

Terrain Type	Typical Contour Interval
Flat terrain	5 m
Moderate terrain	10 m
Hilly terrain	20 m
Mountainous terrain	25 m or 50 m

A map with a 10-metre contour interval means:

• One contour may be 500 m
• The next contour is 510 m
• Then 520 m
• Then 530 m

Understanding contour intervals is critical for calculating elevation change.

Index Contours

To improve readability, every fifth contour is usually drawn as a heavier line.

These are called index contours.

Index contours are labelled with elevation values.

Their purpose is to allow rapid determination of height without counting every contour line.

For example:

If an index contour is labelled 400 m and the contour interval is 10 m:

The next contours represent:

• 410 m
• 420 m
• 430 m
• 440 m

The following index contour is:

• 450 m

This system simplifies map interpretation considerably.

Interpreting Slope and Gradient

One of the most important applications of contour analysis is the interpretation of slope.

Slope determines:

• Walking difficulty
• Vehicle access
• Erosion potential
• Construction suitability
• Water movement

Slope can be assessed visually by examining contour spacing.

Closely Spaced Contours

Closely spaced contours indicate steep gradients.

The closer the contours, the steeper the terrain.

Examples include:

• Escarpments
• Cliff faces
• Canyon walls
• Mountain slopes

In extreme cases, contours may almost merge together.

This indicates exceptionally steep terrain.

Widely Spaced Contours

Widely spaced contours indicate gentle gradients.

Examples include:

• Valley floors
• Floodplains
• Coastal plains
• Plateaus

Travel through such terrain generally requires less physical effort.

Uniform Slopes

Even contour spacing indicates a consistent gradient.

These slopes tend to maintain similar steepness throughout their length.

Convex Slopes

Contours become progressively closer together downhill.

These slopes become steeper toward the base.

Concave Slopes

Contours become progressively wider apart downhill.

These slopes become gentler toward the base.

Understanding slope morphology is valuable for:

• Route planning
• Engineering
• Hydrology
• Land management

Recognising Landforms from Contour Patterns

Experienced navigators rarely look at individual contour lines.

Instead, they recognise patterns.

These patterns correspond to landforms.

Landform recognition is one of the most important map-reading skills.

Hills and Summits

Hills appear as closed concentric contours.

Elevation values increase toward the centre.

The smallest contour generally encloses the highest point.

In some cases, the summit may also be indicated by:

• Spot heights
• Trigonometric stations
• Survey markers

A hill can therefore be identified without any field observation.

The contour pattern alone is sufficient.

Depressions

Depressions are enclosed low points.

They are relatively uncommon in Australian mapping.

Where shown, they are usually represented by hachured contours.

These are contours with small inward-facing tick marks indicating decreasing elevation.

Valleys

Valleys are among the most important terrain features for navigators.

Contour lines crossing a valley form a V-shaped pattern.

The point of the V points upstream.

This rule is extremely useful.

It allows users to determine:

• Direction of drainage
• Catchment structure
• Stream origins

Even where watercourses are not explicitly shown.

Recognising Landforms from Contour Patterns

Spurs

A spur is a finger of high ground projecting from a ridge or mountain.

Spurs are among the most useful terrain features for navigation because they often provide efficient routes through steep country.

On a topographic map, contours form U-shaped or V-shaped patterns that point downhill.

This is the opposite of a valley.

Key characteristics include:

• Higher ground along the centreline
• Descending terrain on both sides
• Good visibility
• Generally well-drained surfaces

Spurs are commonly used as access routes by:

• Bushwalkers
• Surveyors
• Firefighters
• Search and rescue teams

Because they avoid the dense vegetation and difficult footing often found in creek valleys.

Ridges

A ridge is an elongated area of elevated terrain connecting higher points.

Ridges frequently form watershed boundaries between drainage systems.

On a map, ridges are recognised by:

• Long contour patterns
• Multiple connected spurs
• Consistent areas of higher elevation

Ridges often provide excellent navigation corridors because:

• Terrain is easier to interpret
• Visibility is generally superior
• Water crossings are minimised

Many historical travel routes, roads, and walking tracks follow ridgelines for precisely these reasons.

Saddles

A saddle is a low point situated between two areas of higher ground.

If viewed from the side, a saddle resembles the seat of a horse.

Saddles are important because they frequently become:

• Natural crossing points
• Transport corridors
• Track intersections
• Access routes between valleys

On a contour map, a saddle appears where contours narrow between two summits.

Recognising saddles is an essential route-planning skill.

Re-Entrants

A re-entrant is a small valley or indentation extending into a hillside.

They are often overlooked by beginners but become important in detailed navigation.

Re-entrants are identified by:

• V-shaped contours pointing uphill
• Small drainage systems
• Natural water collection zones

In steep terrain, re-entrants frequently contain:

• Seasonal creeks
• Dense vegetation
• Difficult travel conditions

Escarpments

An escarpment is a long, steep slope separating two relatively level areas.

Escarpments are often represented by:

• Extremely close contour spacing
• Cliff symbols
• Abrupt elevation changes

Escarpments create significant navigation barriers and must be carefully considered during route planning.

Cliffs

Cliffs represent near-vertical terrain.

On topographic maps, cliffs may be shown using:

• Special cliff symbols
• Rock-face notation
• Contours merging closely together

A cliff should never be underestimated.

Even a relatively short cliff may be impassable without technical equipment.

Understanding cliff representation is therefore a critical safety skill.

Spot Heights, Benchmarks and Trig Stations

Not all elevation information is conveyed through contours.

Topographic maps also use point-based elevation references.

Spot Heights

A spot height identifies the precise elevation of a specific location.

These are usually displayed as a number adjacent to a point.

Examples:

• 247
• 856
• 1324

These values represent metres above sea level.

Spot heights are commonly used on:

• Summits
• Road intersections
• Infrastructure locations
• Survey points

Benchmarks

Benchmarks are permanent survey reference points with precisely known elevations.

Historically, they formed part of national surveying networks.

Benchmarks provide reliable elevation data for:

• Surveyors
• Engineers
• Infrastructure projects

Trigonometric Stations

Often abbreviated as "Trig Stations", these points formed part of Australia's geodetic survey network.

Trig stations are typically located on:

• Summits
• Prominent ridges
• High points with excellent visibility

They remain useful reference features for navigation and mapping.

Hydrographic Interpretation

Water is one of the most important influences on terrain.

Understanding hydrographic features dramatically improves map-reading capability.

Rivers and Creeks

Watercourses are generally represented by blue lines.

Permanent streams are usually shown as continuous lines.

Intermittent streams may use dashed or broken symbology.

Watercourses reveal:

• Drainage patterns
• Valley systems
• Catchment structure
• Potential water sources

Drainage Networks

A drainage network consists of interconnected streams and rivers.

These networks reveal how water moves through the landscape.

Experienced map readers use drainage patterns to:

• Determine terrain orientation
• Understand watershed boundaries
• Predict valley structure
• Identify travel corridors

Watersheds

A watershed separates adjacent drainage basins.

Water falling on opposite sides of a watershed flows into different catchments.

Watersheds often coincide with:

• Ridgelines
• Mountain ranges
• Elevated terrain

Recognising watersheds assists with both navigation and environmental interpretation.

Wetlands and Swamps

Wetlands are usually indicated using specialised symbols.

These areas often present:

• Difficult footing
• Seasonal flooding
• Dense vegetation

Understanding wetland distribution is important for route selection.

Understanding Map Scale

Scale is fundamental to accurate map interpretation.

Without understanding scale, meaningful measurement is impossible.

What Does Scale Mean?

Scale expresses the relationship between map distance and ground distance.

A scale of:

1:25,000

means:

1 unit on the map equals 25,000 units on the ground.

For example:

1 centimetre on the map equals 250 metres in reality.

Large Scale vs Small Scale

This terminology often confuses beginners.

Large Scale Maps

Examples:

• 1:10,000
• 1:25,000

Provide:

• Greater detail
• Smaller geographic coverage
• More accurate navigation

Small Scale Maps

Examples:

• 1:250,000
• 1:500,000

Provide:

• Less detail
• Larger geographic coverage
• Better regional overview

Choosing the Correct Scale

1:25,000

Best for:

• Bushwalking
• Search and rescue
• Detailed navigation
• Fieldwork

1:50,000

Best for:

• Hiking
• Outdoor recreation
• Regional route planning

1:100,000

Best for:

• General travel
• Regional studies

1:250,000

Best for:

• Touring
• Four-wheel driving
• Large-area navigation

Coordinate Systems and Grid References

Modern maps use coordinate systems that allow precise location determination.

Understanding coordinates is critical for professional navigation.

Latitude and Longitude

Latitude and longitude form a global coordinate system.

Latitude

Measures distance north or south of the Equator.

Longitude

Measures distance east or west of the Prime Meridian.

Together they define a unique location anywhere on Earth.

Map Grid of Australia (MGA)

Most modern Australian topographic maps use MGA coordinates.

Benefits include:

• Simplicity
• Precision
• Compatibility with GPS receivers

MGA is based on the Universal Transverse Mercator (UTM) projection system.

Four-Figure Grid References

Provide location accuracy to approximately one kilometre.

Suitable for general navigation.

Six-Figure Grid References

Provide location accuracy to approximately 100 metres.

Widely used by:

• Emergency services
• Military organisations
• Search and rescue teams

Eight-Figure Grid References

Provide location accuracy to approximately 10 metres.

Suitable for precise navigation and surveying.

Bearings and Compass Navigation

A topographic map becomes vastly more powerful when combined with a compass.

What Is a Bearing?

A bearing is an angular measurement referenced to north.

Bearings are measured clockwise from:

• Grid north
• Magnetic north
• True north

depending on the application.

Taking a Bearing from a Map

The process involves:

1. Identifying the start point
2. Identifying the destination
3. Drawing a line between them
4. Measuring the angle relative to grid north

This produces a grid bearing.

Magnetic Declination

Magnetic north differs from true north.

The angular difference is called magnetic declination.

Maps provide declination information to enable accurate conversion between:

• Grid bearings
• Magnetic bearings

Failure to account for declination can result in significant navigation errors.

Route Planning Using Topographic Maps

Experienced navigators spend considerable time studying maps before entering the field.

This process is known as route planning.

Step 1: Study Terrain

Identify:

• Ridges
• Valleys
• Steep slopes
• Watercourses

Step 2: Assess Gradient

Contour spacing reveals:

• Easy travel areas
• Difficult climbs
• Potential obstacles

Step 3: Identify Water Sources

Reliable water may determine:

• Campsite locations
• Travel distances
• Safety margins

Step 4: Locate Decision Points

Examples include:

• Track junctions
• Saddles
• Ridge intersections
• River crossings

Step 5: Plan Alternatives

Good route planning always includes contingency options.

Weather, fire, flooding, and fatigue may require route modification.

Terrain Association

Terrain association is one of the most effective navigation techniques.

Rather than relying solely on compass bearings, the navigator continuously compares:

What the map shows

with

What the landscape reveals

Features used include:

• Ridges
• Valleys
• Peaks
• Watercourses
• Infrastructure

This technique greatly reduces navigation error.

Common Map Reading Errors

Many navigation mistakes originate from simple interpretation errors.

Ignoring Contours

Beginners often focus exclusively on tracks.

The terrain matters just as much as the route.

Misidentifying Valleys and Spurs

Confusing these landforms is common.

Remember:

• Valleys point uphill
• Spurs point downhill

Ignoring Scale

Small errors on a map can represent substantial distances on the ground.

Over-Reliance on GPS

Electronic navigation should supplement—not replace—map reading skills.

Integrating GPS with Topographic Maps

Modern navigation systems combine traditional and digital tools.

The most effective approach uses:

🗺️ Topographic Map

🧭 Compass

📍 GPS Receiver

Each tool compensates for the limitations of the others.

Australian Topographic Mapping Systems

Australia possesses one of the world's most comprehensive topographic mapping programs.

Popular mapping systems include:

Geoscience Australia Maps

Produced by the national mapping agency

NSW Topographic Maps

Produced for detailed navigation and land management.

QTopo

Queensland's official topographic mapping program.

AUSTopo

National coverage using modern datasets and cartographic standards.

State Government Mapping Programs

Produced by various state authorities for planning, navigation, and land administration.

Why Topographic Maps Remain Essential

Despite the growth of digital navigation technology, topographic maps remain unmatched for:

• Terrain interpretation
• Route planning
• Situational awareness
• Strategic navigation
• Education and training

Most importantly, they provide an understanding of the landscape that no electronic device can fully replicate.

A GPS can tell you where you are.

A topographic map explains why the landscape looks the way it does.

Conclusion

Reading a topographic map is not simply a navigation skill.

It is a method of analysing terrain.

By understanding contour lines, landforms, drainage systems, scale, coordinates, and navigation principles, a map reader gains the ability to interpret the landscape long before entering the field.

This capability improves:

• Safety
• Efficiency
• Decision-making
• Environmental understanding
• Navigation accuracy

Whether used by bushwalkers, surveyors, land managers, engineers, emergency services personnel, or outdoor professionals, topographic maps remain one of the most effective tools for understanding the physical world.

The ability to read them confidently is a skill that continues to provide value regardless of advances in technology.

For those seeking detailed Australian topographic mapping, Mapworld remains one of the country's leading sources of NSW Topographic Maps, QTopo maps, AUSTopo sheets, waterproof field maps, navigation resources, and specialist cartographic products.

A well-read map is more than paper.

It is a model of the landscape itself.

Share:

---

Leave a comment

Comments will be approved before showing up.

Name *

Email *

Comment *

---

Also in Map Guides, Travel Tips & Reviews
